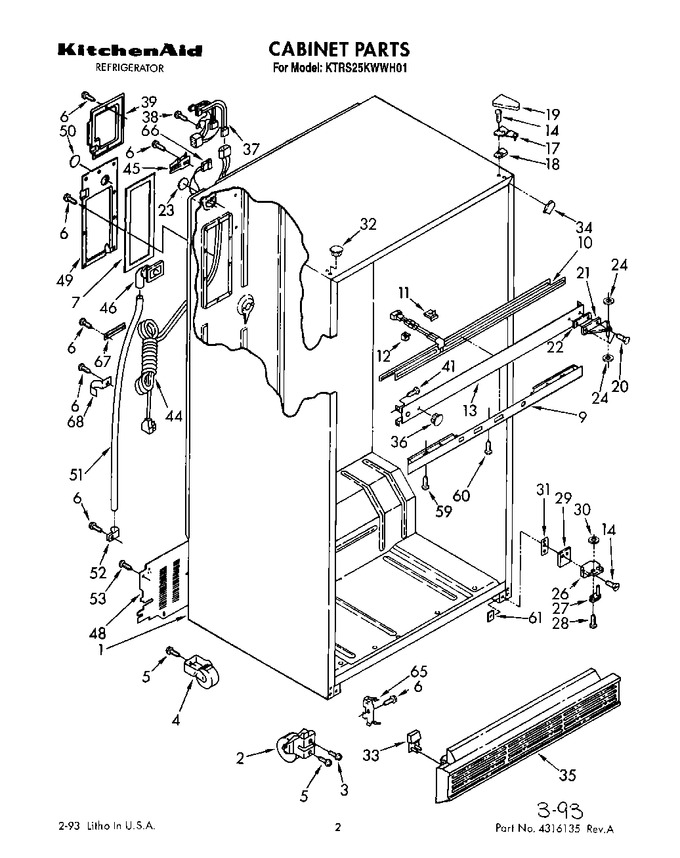

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489393		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	2147324		Roller, Rear (2)		Appelez-nous	-
5	488454		Screw, 1/4-28 X 1/2 (6)		Appelez-nous	-
6	WP489478		Screw   (Replaces: 489242)				$ 8.18
7	1114548		Sealing Gasket		Appelez-nous	-
9	1117939		Control, Front Cover		Appelez-nous	-
10	1114550		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Center Rail (4)		Appelez-nous	-
12	2149077		Spacer (2)		Appelez-nous	-
13	1114541		Center Rail (almond)		Appelez-nous	-
13	1114538		Center Rail (white)		Appelez-nous	-
14	489327		Screw		Appelez-nous	-
17	1123514		Hinge, Top		Appelez-nous	-
18	1123515		Shim, Hinge Top				$ 6.58
19	989194		Hinge Cover (almond)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
20	489179		Screw		Appelez-nous	-
21	2151685		Hinge, Center		Appelez-nous	-
22	836195		Shim, Center (repair)		Appelez-nous	-
22	2151687		Shim, Hinge Center		Appelez-nous	-
23	1129056		Hole Seal		Appelez-nous	-
24	WP488296		Washer, 11/64   (Replaces: 488296)			Immediately	$ 7.55
26	2148563		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	836196		Shim, Bottom		Appelez-nous	-
30	WP487802		Washer, 7/32   (Replaces: 488184)			Immediately	$ 7.91
31	1129868		Spacer		Appelez-nous	-
32	WP2151652		Hole Plug (white)   (Replaces: 2151652)				$ 22.87
32	2151653		Hole Plug (almond)		Appelez-nous	-
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
34	1110709		Filler, Wrap Corner (almond)		Appelez-nous	-
34	1110708		Filler, Wrap Corner (white)		Appelez-nous	-
35	1125714		Grille (white)		Appelez-nous	-
35	1125716		Grille (almond)		Appelez-nous	-
36	1129062		Hole Plug (5) (white)		Appelez-nous	-
36	1129063		Hole Plug (5) (almond)		Appelez-nous	-
37	2149634		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	1105606		Cover, Wiring		Appelez-nous	-
41	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	937062		Fitting, Drain		Appelez-nous	-
48	2147323		Cover, Unit		Appelez-nous	-
49	1105527		Cover, Plug		Appelez-nous	-
50	1120224		Hole Seal		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 509638)				$ 125.72
52	836077		Clamp		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
59	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488725)				$ 7.92
60	WP489174		Screw (2)   (Replaces: 489174)				$ 7.30
61	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 2155013)			Immediately	$ 8.11
66	2149732		Housing Plug		Appelez-nous	-
67	1105607		Tube Clamp		Appelez-nous	-
68	1105607		Tube Clamp		Appelez-nous	-
