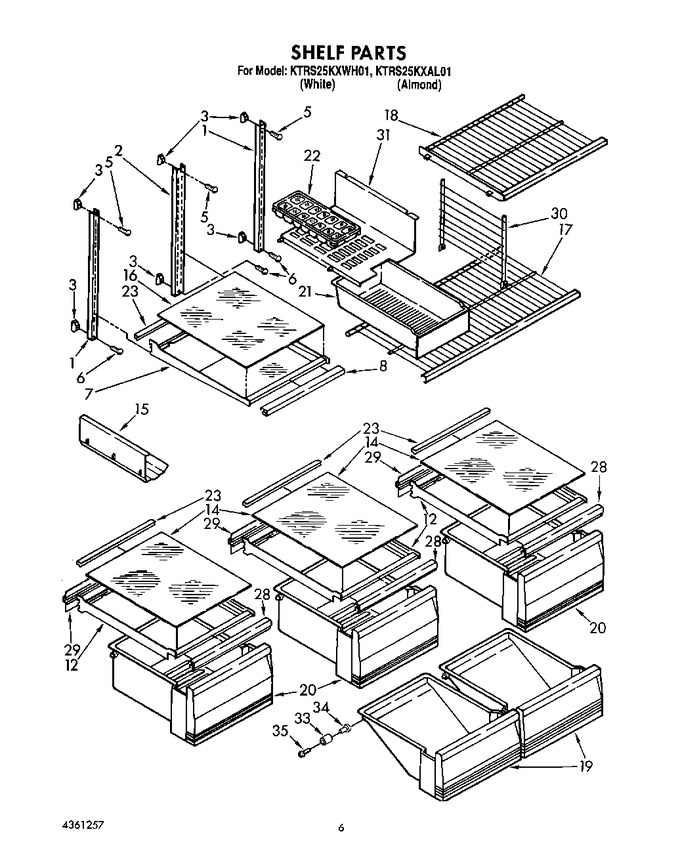

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
5	489345		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1125748		Shelf, Cantilever (3)		Appelez-nous	-
8	1125784		Gasket (front)		Appelez-nous	-
12	1125777		Pan Shelf, (3) Cantilever		Appelez-nous	-
14	1125779		Glass, Shelf		Appelez-nous	-
15	1126137		Wine Rack (egg)		Appelez-nous	-
16	1125749		Glass, Shelf		Appelez-nous	-
17	1125745		Shelf, Freezer		Appelez-nous	-
18	1125746		Shelf, Freezer		Appelez-nous	-
19	1117909		Pan, Crisper		Appelez-nous	-
20	1125932		Pan, Meat		Appelez-nous	-
21	W11625904		Ice Cube Pan   (Replaces: 1125561)				$ 67.83
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
23	1125754		Retainer, Shelf		Appelez-nous	-
28	1125813		Gasket (front)		Appelez-nous	-
29	1125816		Gasket, Rear		Appelez-nous	-
30	1125542		Divider		Appelez-nous	-
31	1125543		Shelf, Ice Tray		Appelez-nous	-
33	1112303		Roller (roller L.s.)		Appelez-nous	-
33	1125530		Roller, R.s.		Appelez-nous	-
34	1112308		Eyelet, Roller		Appelez-nous	-
35	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
35	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
35	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
35	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
35	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
35	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
35	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
35	833938		Kit, Terminal Connector				$ 8.47
35	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
35	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
35	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
35	WP489261		Screw   (Replaces: 489261)				$ 8.33
35	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
35	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
35	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
35	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
35	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
35	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
35	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
35	350942		Primer White (13 Oz. Spray Can)				$ 94.14
35	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
35	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
35	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
35	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
35	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	1129316		Kims8   (Replaces: 1129318)			Immediately	$ 149.11
	LIT4361257		Parts List		Appelez-nous	-
	LIT2154987		Service & Wiring Sheet		Appelez-nous	-
	LIT1125570		Care & Use Guide		Appelez-nous	-
	LIT1126215		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
