Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2172831 Bottom, Compartment Separator Appelez-nous -
2 2160636 Box, Control Appelez-nous -
3 WP2149705 Switch, Light   (Replaces: 2149705) In-Stock Immediately $ 40.40

4 WP2183400 Timer, Defrost   (Replaces: 2162044) In-Stock Immediately $ 86.97

5 2172812 Clip, Thermostat Tube Retention Appelez-nous -
6 1125964 Switch, Toggle Appelez-nous -
7 WPW10119935 Socket   (Replaces: 2155597) Special Order $ 106.16

8 W10887190 Bulb, Light   (Replaces: 2160708) In-Stock Immediately $ 19.23

9 940014 Hole Plug Special Order $ 18.33

10 2176747 Thermostat Appelez-nous -
11 1125513 Slide, Thermostat Appelez-nous -
12 2006254 Screw   (Replaces: 489214) Special Order $ 13.79

13 2160640 Light, Bar Left Appelez-nous -
14 1125578 Slide, Air Control Appelez-nous -
15 2160641 Light, Bar Right Appelez-nous -
16 1126158 Rod, Connecting Appelez-nous -
17 2169523 Air Diffuser Assembly Appelez-nous -
18 2157255 Gasket, Air Diffuser Appelez-nous -
19 1108176 Cover, Air Diffuser Appelez-nous -
20 WP2196003 Thermostat Tube Barrier   (Replaces: 1128288) Special Order $ 8.35

21 WP489478 Screw   (Replaces: 489242) Special Order $ 8.18

22 2160637 Wiring Assembly, Control Box Appelez-nous -
23 2159734 Gasket, Bottom Separator Appelez-nous -
24 2168577 Separator, Compartment (rear) Appelez-nous -
25 2160616 Gasket, Ice Chute Appelez-nous -
26 1108196 Insulation, Filler Appelez-nous -
27 2160627 Insulation, Compartment Separator Appelez-nous -
28 1125579 Window, Air Control Appelez-nous -
29 1125580 Window, Thermostat Appelez-nous -
30 2160799 Wire Assembly Appelez-nous -
31 2160752 Short Rod Appelez-nous -
32 1125581 Pivot Arm Appelez-nous -
33 1115189 Separator, Compartment (top) (front) Appelez-nous -
34 2168582 Rubber Strip Appelez-nous -
35 937065 Cup, Drain Appelez-nous -
38 2160634 Ice Chute, (seperator) Appelez-nous -
39 WP4387911 Switch-door   (Replaces: 851387) In-Stock Immediately $ 41.64

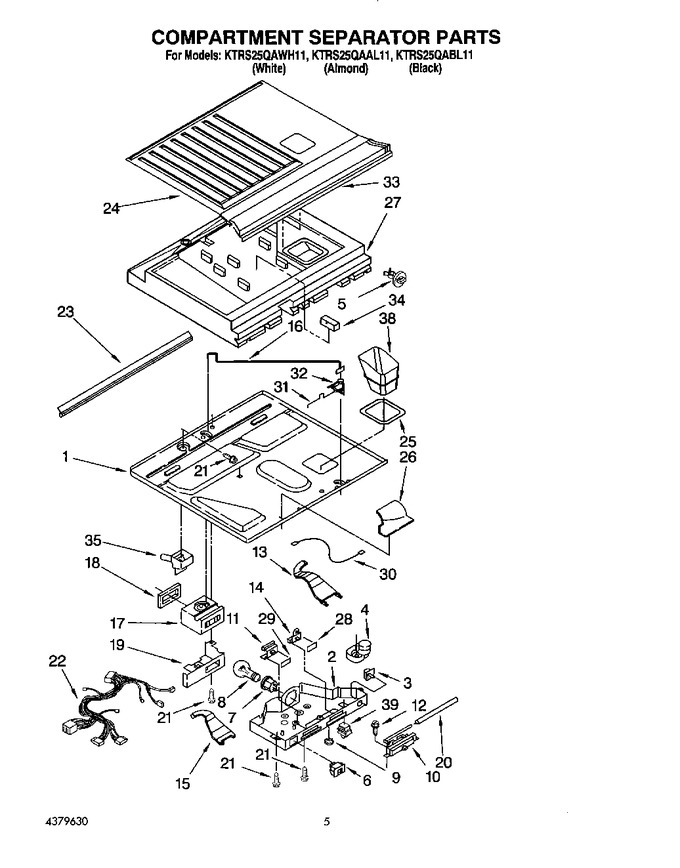

    View Diagram in Separate Window     Print Icon   Print Part List
