SELECT A DIAGRAM

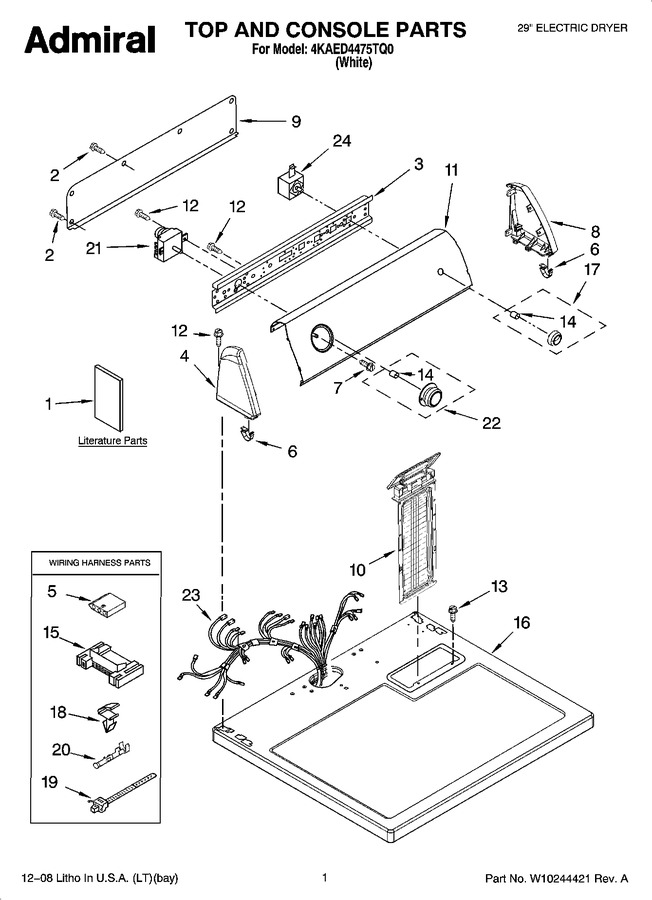

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10131622		Sheet, Cycle Feature (arabic)		Appelez-nous	-
1	W10167647		Wiring Diagram		Appelez-nous	-
1	W10131617		Guide, Use & Care (english)		Appelez-nous	-
1	W10131618		Guide, Use & Care (arabic)		Appelez-nous	-
1	W10131613		Instructions, Installation (english)		Appelez-nous	-
1	W10131614		Instructions, Installation (arabic)		Appelez-nous	-
1	W10131621		Sheet, Cycle Feature (english)		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	8579672		Bracket-control		Appelez-nous	-
4	8579674		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
8	8579673		Cap, End (r.h.)		Appelez-nous	-
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	W10115454		Panel, Control		Appelez-nous	-
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	3395683		Connector, Motor			Immediately	$ 54.45
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	W10110065		Knob, Push-to-start				$ 87.57
18	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
19	3391249		Tie, Cable		Appelez-nous	-
20	WP94614		Terminal   (Replaces: 94614)				$ 8.05
21	WP8299781		Timer, 60 Hz.   (Replaces: 8299781)			Immediately	$ 380.55
22	W10110064		Timer Knob Assembly				$ 26.97
23	W10267858		Harness, Wiring   (Replaces: W10111060)		Appelez-nous	-
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66

    View Diagram in Separate Window       Print Part List
