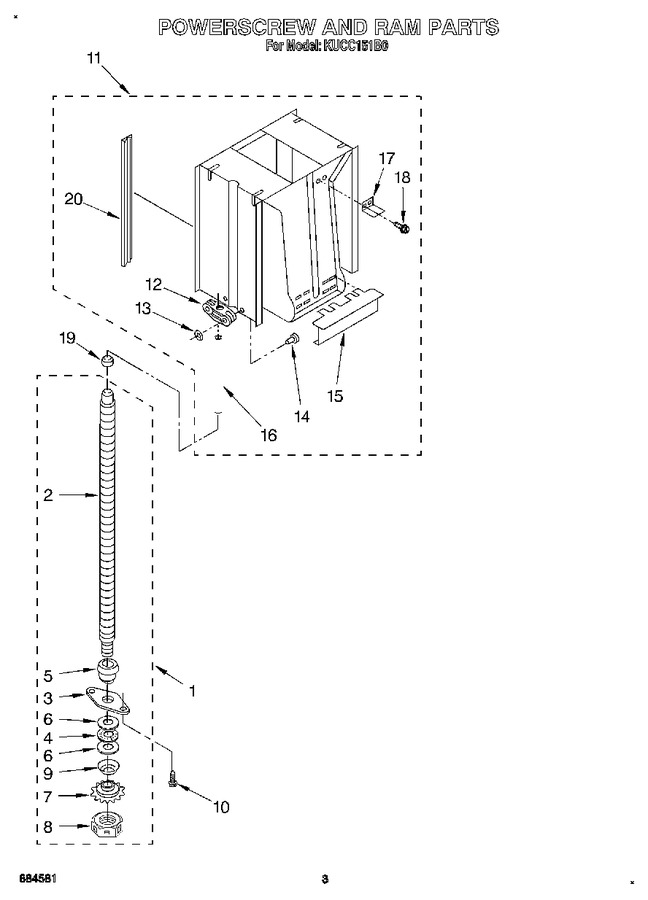

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10451272		Screw, Power Complete Assembly (2)   (Replaces: 9870500)			Immediately	$ 264.80
2	N/A		Screw, Power (available Only As Complete Assembly)		Appelez-nous	-
3	779121		Plate, Bearing (2)				$ 29.22
4	W10917043		Bearing, Needle (2)   (Replaces: 775482)				$ 14.47
5	776941		Hub, Power Screw (2)				$ 28.14
6	775481		Race, Thrust (2)				$ 52.61
7	W11679164		Sprocket, Washer (2)   (Replaces: 777385)		Appelez-nous	-
8	4154842		Nut, Power Screw (2)		Appelez-nous	-
9	WP777332		Washer, Cone (2)   (Replaces: 777332)				$ 7.30
10	775071		Screw, 10-24 X 3/4 (4)		Appelez-nous	-
11	W11696573		Ram Assembly   (Replaces: 9870503)				$ 334.76
12	WP9870163		Nut, Power   (Replaces: 9870163)				$ 98.72
13	WP90296		Clip   (Replaces: 90296)				$ 8.24
14	882694		Stud   (Replaces: 9870187)				$ 8.32
15	9870164		Wiper		Appelez-nous	-
16	WP9870037		Stop, Ram   (Replaces: 9870037)				$ 8.88
17	W11684541		Bracket, Top Limit Switch   (Replaces: 9870498)		Appelez-nous	-
18	WP3351614		Screw, (2) 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
19	W11724671		Cap, Stop   (Replaces: 9870775)				$ 13.76
20	W10917246		Slide, Ram (4)   (Replaces: 9870169)				$ 125.52
