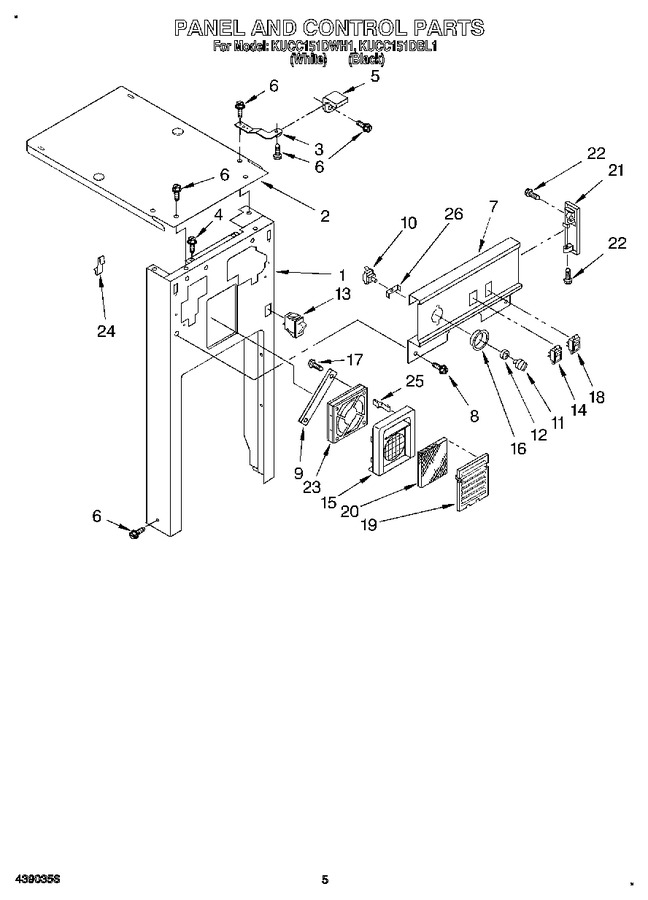

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871073		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
4	4153701		Screw, 8-18 X 3/8		Appelez-nous	-
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	9871049		Escutcheon, Control (white)		Appelez-nous	-
7	9871101		Escutcheon, Control (black)		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	4152703		Strap, Fan				$ 75.32
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	WP9871799		Knob, Rotary Switch (white)   (Replaces: 9871093)				$ 67.23
11	WP9871800		Knob, Rotary Switch (black)   (Replaces: 9871127)				$ 64.70
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	WP4387911		Switch, Drawer   (Replaces: 4152058)			Immediately	$ 41.64
14	WP9872161		Switch, Rocker (black)   (Replaces: 9871105)				$ 139.86
14	WP9872161		Switch, Rocker (white)   (Replaces: 9871087)				$ 139.86
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
16	4153253		Bezel (white)		Appelez-nous	-
16	780387		Bezel (black)		Appelez-nous	-
17	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
18	9871086		Switch, Air Freshener (white)		Appelez-nous	-
18	9871104		Switch, Air Freshener (black)		Appelez-nous	-
19	9870911		Cover, Air Freshener (white)				$ 49.04
19	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 71.65
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 18.60
21	9871084		End Cap (white, Lh)		Appelez-nous	-
21	9871102		End Cap (black, Lh)		Appelez-nous	-
21	9871085		End Cap (white, Rh)		Appelez-nous	-
21	9871103		End Cap (black, Rh)		Appelez-nous	-
22	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
23	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
24	4151897		Clip, Wire				$ 7.40
25	4151897		S-clip				$ 7.40
26	780417		Bracket, Switch		Appelez-nous	-
