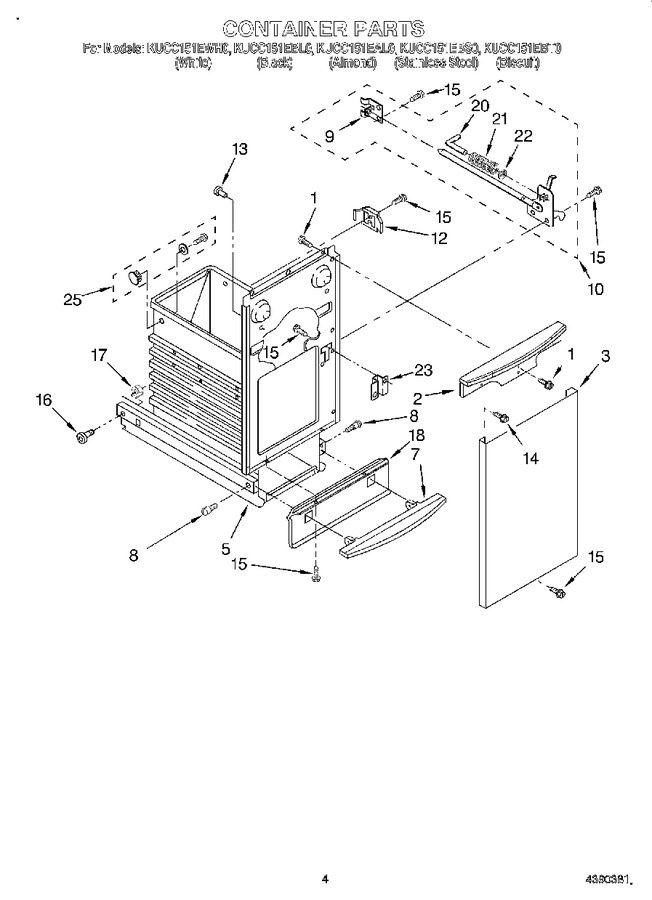

04 - Container
05 - Panel And Control
06 - Accessory
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489069 | Screw, Hex Head (Replaces: 780230) |
|
Immediately | $ 8.40 | ||||
| 2 | WP9871267 | Handle, Container (white) (Replaces: 9871235) |
|
$ 301.60 | |||||
| 2 | 9871573 | Handle, Container (biscuit) |
|
- | |||||
| 2 | WP9871267 | Handle, Container (almond) (Replaces: 9871266) |
|
$ 301.60 | |||||
| 2 | WP9871267 | Handle, Container (black) (Replaces: 9871267) |
|
$ 301.60 | |||||
| 3 | 9871574 | Panel, Container (biscuit) |
|
- | |||||
| 3 | 9871309 | Panel, Container (white) |
|
$ 46.45 | |||||
| 3 | W11795370 | Panel, Container (black) (Replaces: 9871311) |
|
$ 362.84 | |||||
| 3 | 9871310 | Panel, Container (almond) |
|
- | |||||
| 3 | W10813881 | Panel, Container (stainless Steel) (Replaces: 9871312) |
|
$ 264.56 | |||||
| 5 | WPW10451276 | Container Assembly (Replaces: 9870996) |
|
$ 510.52 | |||||
| 7 | WP9871031 | Pedal, Foot (white) (Replaces: 9871031) |
|
$ 159.54 | |||||
| 7 | W11679165 | Pedal, Foot (black) (Replaces: 4149672) |
|
$ 62.46 | |||||
| 7 | 9871577 | Pedal, Foot (biscuit) |
|
- | |||||
| 8 | WP780263 | Screw, Shoulder No.8-32 X 3/8 (2) (Replaces: 780263) |
|
$ 8.34 | |||||
| 9 | WP776395 | Guide, Rear Latch (Replaces: 776395) |
|
$ 98.10 | |||||
| 10 | 675379 | Latch Assembly (Replaces: 9870066) |
|
$ 182.53 | |||||
| 12 | 9871125 | Actuator, Saftey Switch |
|
$ 29.37 | |||||
| 13 | 775785 | Bumper, Container (2) |
|
- | |||||
| 14 | WP3196175 | Screw (Replaces: 3196175) |
|
Immediately | $ 7.55 | ||||
| 15 | WP489478 | Screw, 8 X 1/2 (Replaces: 489478) |
|
$ 8.18 | |||||
| 16 | WP9871602 | Container, Bearing Roller (Replaces: 776261) |
|
$ 13.87 | |||||
| 17 | WP776356 | Locknut, 3/8-24 (2) (Replaces: 776356) |
|
$ 8.53 | |||||
| 18 | WPW10242557 | Plate, Toe Guard (black) (Replaces: 777328) |
|
$ 142.53 | |||||
| 18 | W10917704 | Plate, Toe Guard (white) (Replaces: 9871030) |
|
- | |||||
| 18 | 9871578 | Plate, Toe Guard (biscuit) |
|
- | |||||
| 20 | W11705836 | Pin (Replaces: 776654) |
|
- | |||||
| 21 | 775736 | Spring, Latch |
|
$ 93.80 | |||||
| 22 | W11679168 | ``e`` Ring (Replaces: 775735) |
|
- | |||||
| 23 | 775665 | Plate, Latch |
|
$ 62.39 | |||||
| 25 | W11705833 | Retainer, Bag (contains 4 Each) (Replaces: 4147703) |
|
- |
