SELECT A DIAGRAM

01 - Motor And Drive, Literature


02 - Frame


03 - Powerscrew And Ram


04 - Container


05 - Panel And Control

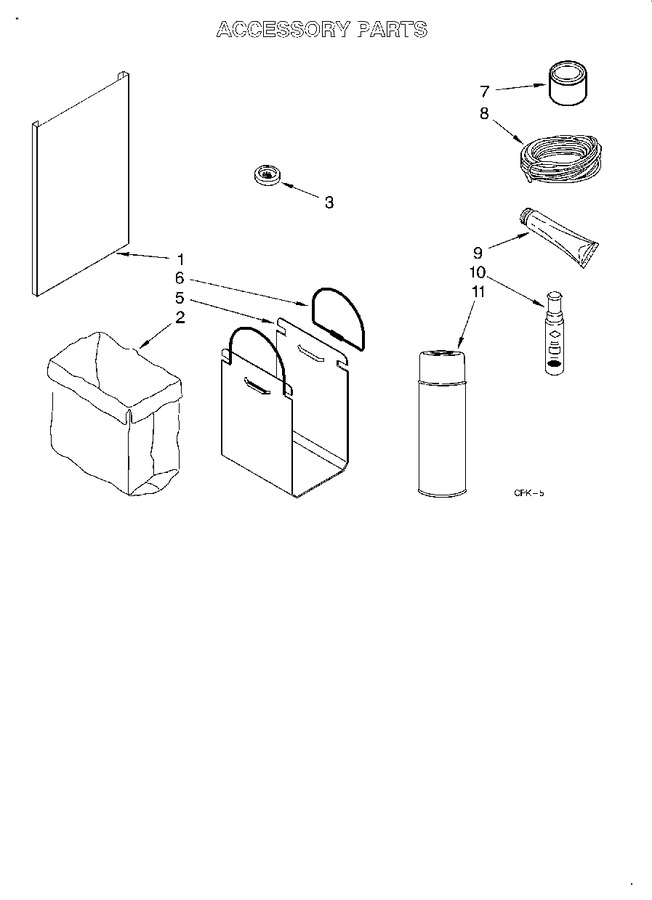

06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10813881		Panel, Container Front (stainless Steel)   (Replaces: 9871312)				$ 251.96
1	9871309		Panel, Container Front (white)				$ 46.45
1	W11795370		Panel, Container Front (black)   (Replaces: 9871311)				$ 345.56
1	9871310		Panel, Container Front (almond)		Appelez-nous	-
2	W10165295RP		Bag, Trash (15`` Plastic) (15 Pack)   (Replaces: 4318921)			Immediately	$ 23.09
2	W10165295BU		Bag, Trash (15`` Plastic) (12 Boxes Of 15 Pack)   (Replaces: 94318921)			Immediately	$ 228.91
2	4318922		Bag, Trash (15`` Plastic) (60 Pack)		Appelez-nous	-
3	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
5	13030RP		Carrier, Bag (includes No. 6)   (Replaces: 13030)			Immediately	$ 55.55
6	WP777108		Handle, Bag Carrier   (Replaces: 777108)				$ 35.23
7	675351		Grease 4 Oz. (use On Power Screw & Ram Pressure Pads)		Appelez-nous	-
8	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
8	47263		Wire, 25`` Roll (white 12 Ga.)		Appelez-nous	-
8	299885		Wire, 25` Roll (red 12 Ga.)		Appelez-nous	-
8	47261		Wire, 25`` Roll (black 12 Ga.)		Appelez-nous	-
8	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
8	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
8	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
9	WP279368		Adhesive, Insulation (2oz Tube)   (Replaces: 279368)			Immediately	$ 110.91
10	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
10	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
10	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
10	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
10	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
10	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
11	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
11	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
11	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
11	285006		Paint, Spray 13 Oz. (black)				$ 57.04
11	261890		Paint, Spray 13 Oz. (harvest Gold)		Appelez-nous	-
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21

    View Diagram in Separate Window       Print Part List
