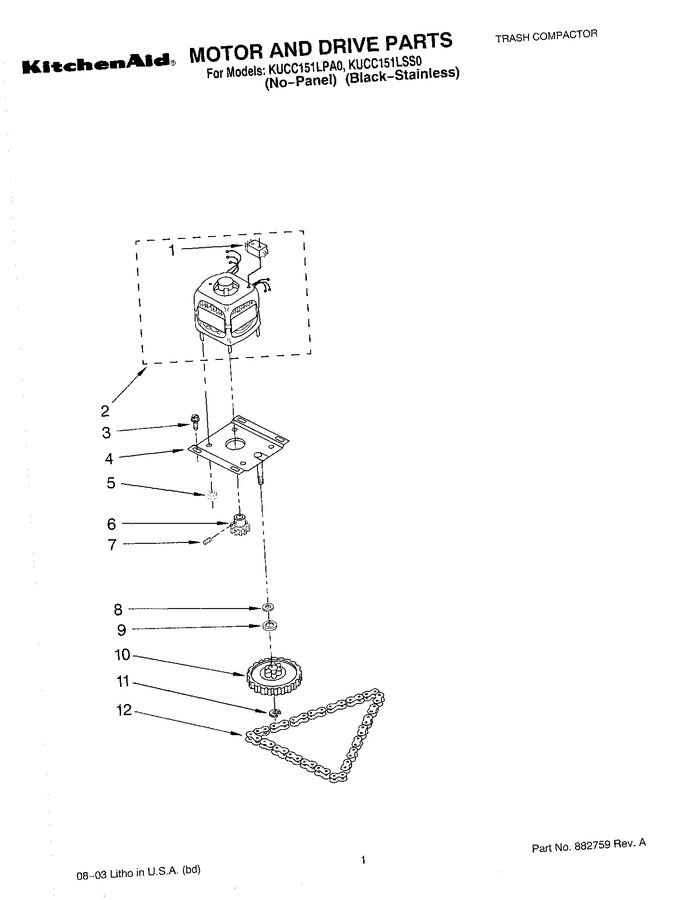

01 - Motor And Drive Parts
02 - Frame Parts
03 - Powerscrew And Ram Parts
04 - Container Parts
05 - Panel And Control Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439651 | Switch, Motor (Replaces: 777971) |
|
$ 343.19 | |||||
| 2 | W10439651 | Motor, Drive (includes No.1) (Replaces: 9870343) |
|
$ 343.19 | |||||
| 3 | WP8204624 | Screw, 1/4-20 X 3/4 (4) (Replaces: 9871067) |
|
$ 17.48 | |||||
| 4 | 776327 | Plate, Drive Mount |
|
- | |||||
| 5 | WP776338 | Locknut, 10-32 (4) (Replaces: 776338) |
|
$ 20.32 | |||||
| 6 | 882699 | Gear, Drive (Replaces: 4149667) |
|
$ 123.55 | |||||
| 7 | WP454512 | Pin, Slotted Spring (Replaces: 454512) |
|
$ 7.92 | |||||
| 8 | 776035 | Washer, Wave |
|
$ 14.05 | |||||
| 9 | W11214485 | Washer, Thrust (Replaces: 297462) |
|
$ 14.24 | |||||
| 10 | 882699 | Gear, Driven (Replaces: 777124) |
|
$ 123.55 | |||||
| 11 | WP776036 | Clip, Ring (Replaces: 776036) |
|
$ 7.80 | |||||
| 12 | LIT9744469 | Literature Parts (label, 1-800 Number) |
|
- | |||||
| 12 | 780477 | Chain, Drive Parts Not Illustrated And Optional Parts (not Included) |
|
$ 217.07 | |||||
| 12 | 9871047 | Harness, Wiring |
|
- | |||||
| 12 | 9870118A | Undercounter Conversion Kit (Replaces: 9870118) |
|
$ 64.54 | |||||
| 12 | N/A | Literature Parts |
|
- | |||||
| 12 | LIT9871923 | Literature Parts (sheet, Tech) |
|
- | |||||
| 12 | LIT9871915 | Literature Parts (guide, Use & Care) |
|
- |
