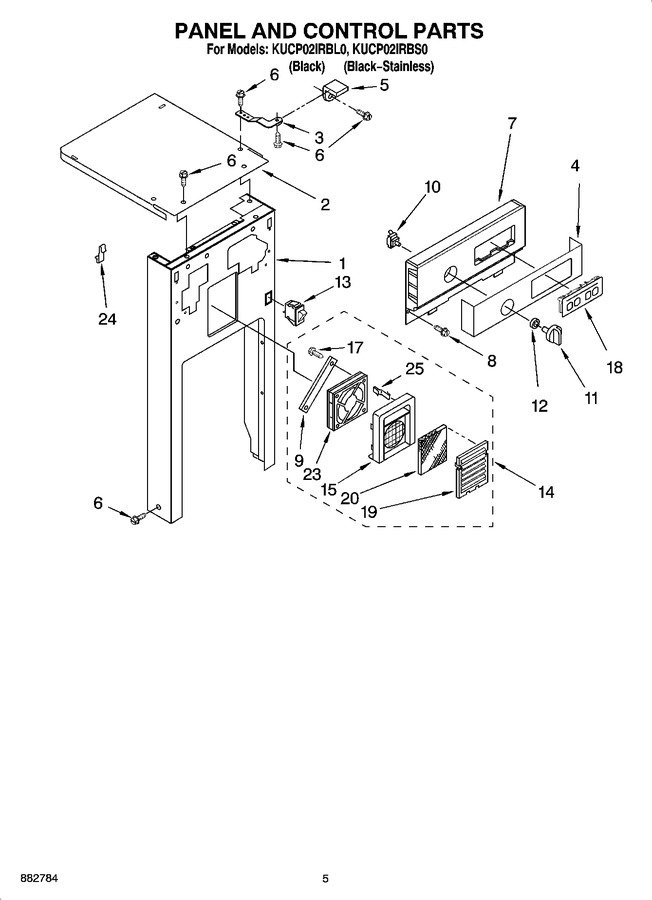

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871072		Panel, Front Frame (black)				$ 246.38
2	9871825		Cover, Top		Appelez-nous	-
3	W11729437		Bracket, Retainer   (Replaces: 9871993)			Immediately	$ 24.48
4	9872198B		Insert, Escutcheon (black)		Appelez-nous	-
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 28.53
6	WP489478		Screw, 8 X 1/2ab (6)   (Replaces: 489478)				$ 8.18
7	9871747		Escutcheon, Control (black)		Appelez-nous	-
8	246131		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	4152703		Strap, Fan				$ 75.32
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	WP9871800		Knob, Rotary Switch (black)   (Replaces: 9871800)				$ 64.70
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	9871829		Switch, Drawer				$ 93.95
14	9871893		Fan Mount Assembly				$ 348.34
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 348.34
17	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
18	9871767		Switch Assembly (black)				$ 27.77
19	WP9871099		Cover, Air Freshener (black)   (Replaces: 9871099)				$ 71.65
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 18.60
23	9871893		Fan, Filter   (Replaces: 9871051)				$ 348.34
24	4151897		Clip, Wire				$ 7.40
25	4151897		S-clip				$ 7.40
