SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts

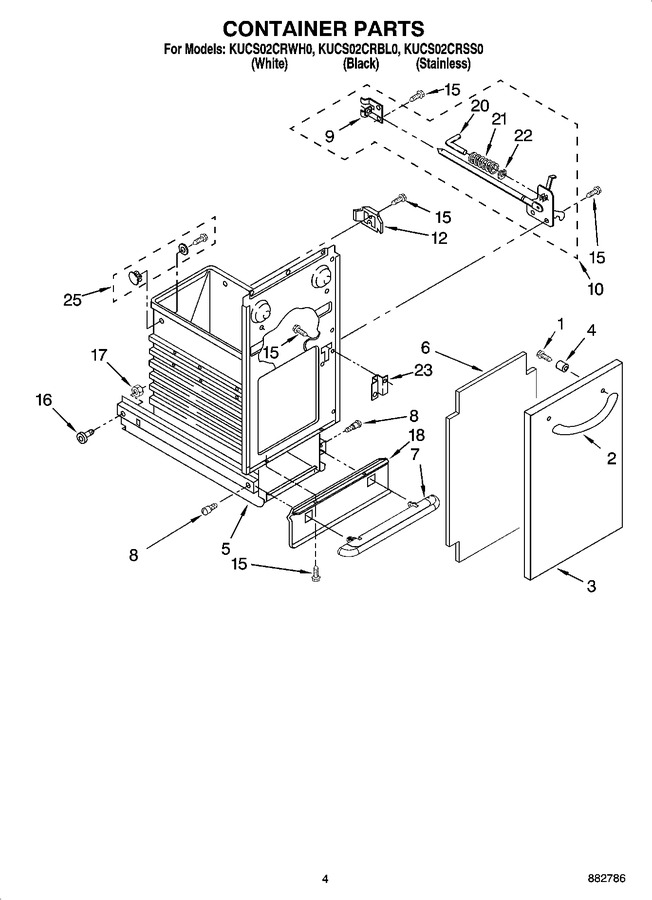

04 - Container Parts


05 - Control Panel Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	246131		Screw		Appelez-nous	-
2	9871564B		Handle, Container (black)		Appelez-nous	-
2	9871564W		Handle, Container (white)		Appelez-nous	-
2	9871564		Handle, Container (stainless)				$ 113.64
3	9872142		Panel, Container (white)		Appelez-nous	-
3	9872143		Panel, Container (black)		Appelez-nous	-
3	9871808		Panel, Container (stainless)		Appelez-nous	-
4	WP9871563		Spacer, Handle   (Replaces: 9871563)				$ 10.71
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 486.21
6	9872153		Insulation, Panel		Appelez-nous	-
7	9871989W		Pedal, Foot (white)		Appelez-nous	-
7	W11636605		Pedal, Foot (black)   (Replaces: 9871989B)				$ 62.74
8	WP780263		Screw, Shoulder 8-32 X 3/8 (2)   (Replaces: 780263)				$ 7.85
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 93.43
10	675379		Latch Assembly   (Replaces: 9870066)				$ 173.84
12	9871125		Spring, Safety Switch				$ 27.97
15	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 7.75
16	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.21
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 7.85
18	W10917704		Plate, Toe Guard (white)   (Replaces: 9871030)		Appelez-nous	-
18	WPW10242557		Plate, Toe Guard (black)   (Replaces: 777328)				$ 135.74
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 89.33
22	W11679168		Ring, ``e``   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 59.42
25	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
