SELECT A DIAGRAM

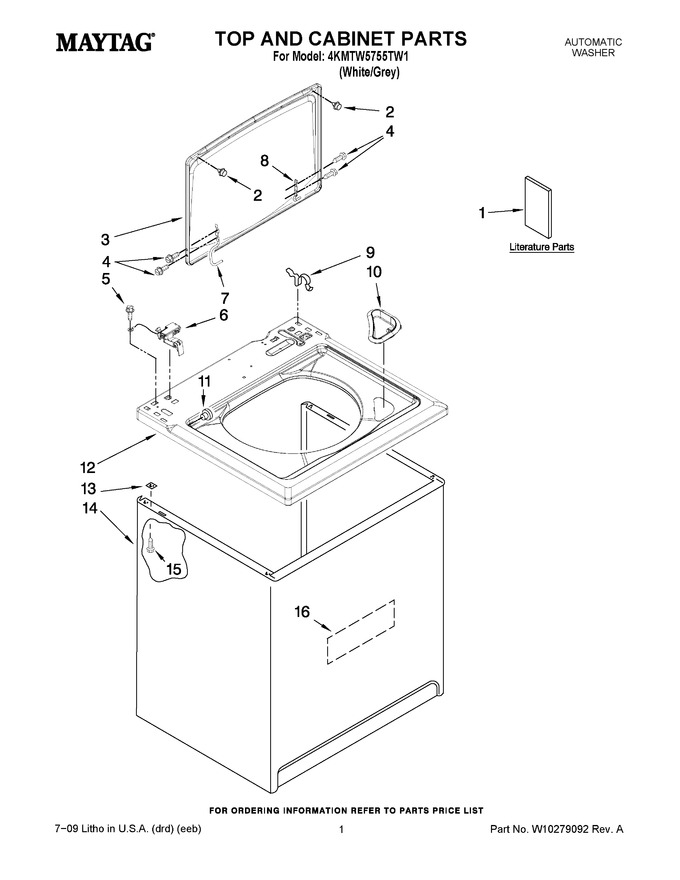

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10117896		Feature Sheet (english)		Appelez-nous	-
1	W10117057		Wiring Diagram		Appelez-nous	-
1	W10117897		Feature Sheet (arabic)		Appelez-nous	-
1	W10117890		Use & Care Guide (english)		Appelez-nous	-
1	W10117891		Use & Care Guide (arabic)		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 8.33
3	W10093782		Lid		Appelez-nous	-
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
5	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
6	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
7	W10225136		Hinge, Lid (l.h.)				$ 26.22
8	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 28.82
9	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
10	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 8.36
11	8319539		Bearing, Lid Hinge (2)				$ 5.51
12	W10194868		Top				$ 128.66
13	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 8.07
14	63424		Cabinet				$ 388.52
15	WP3390631		Screw 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
16	W11096159		Cabinet - Damper, Sound   (Replaces: W10177046)				$ 28.73

    View Diagram in Separate Window       Print Part List
