SELECT A DIAGRAM

01 - Top And Cabinet Parts

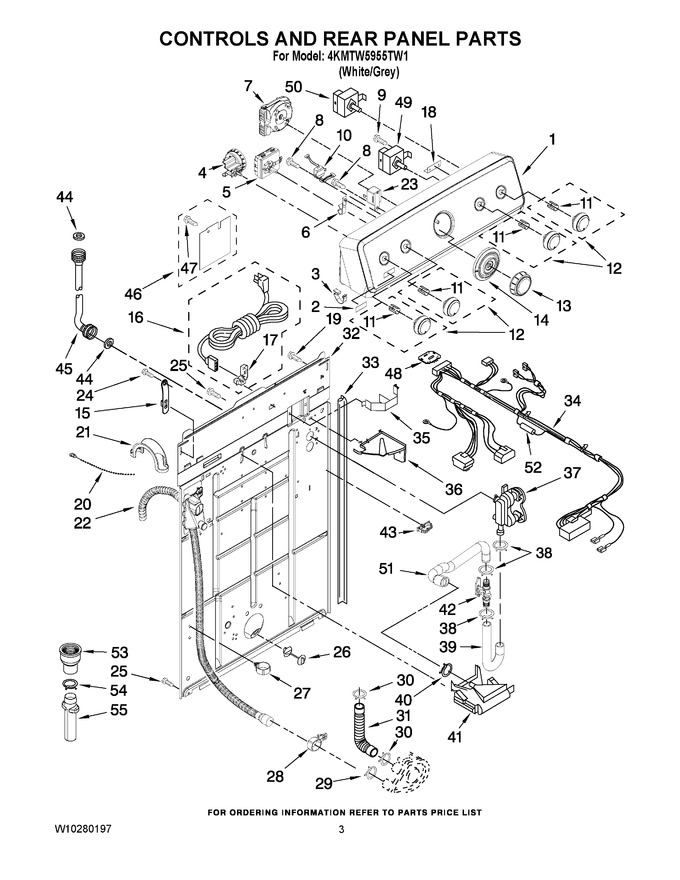

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115408		Console & Control Panel Assembly (includes Items 2 & 3)		Appelez-nous	-
2	W10203949		Badge Assembly				$ 68.61
3	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
4	W10339250		Switch, Water Level   (Replaces: 8577842)				$ 211.80
5	W10168360		Switch, Water Temperature (atc)   (Replaces: 3955774)				$ 139.27
6	8317975		Retainer, Harness				$ 5.86
7	WPW10117058		Timer (motor Not A Service Part)   (Replaces: W10117058)				$ 314.97
8	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
9	3400073		Screw, Ground		Appelez-nous	-
10	3407160		Transformer		Appelez-nous	-
11	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
12	WPW10110035		Knob, Control   (Replaces: W10110035)				$ 58.08
13	WPW10110033		Knob, Timer   (Replaces: W10110033)				$ 63.88
14	W10112571		Dial, Timer				$ 48.51
15	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.78
16	W10111552		Cord, Power		Appelez-nous	-
17	8559337		Strain Relief, Power Cord		Appelez-nous	-
18	8316039		Shield, Atc		Appelez-nous	-
19	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
20	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
21	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
22	WPW10096921		Drain Hose Assembly (includes Items 27 & 28)   (Replaces: W10138068)			Immediately	$ 67.38
23	3952439		Buzzer, Mini		Appelez-nous	-
24	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
25	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	8541667		Clamp, Hose				$ 5.86
28	8541668		Clamp, Hose				$ 21.26
29	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
32	8318015		Panel, Rear				$ 148.59
33	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
34	W10121822		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-
35	8055003		Clip, Harness & Pressure Hose				$ 36.24
36	8539874		Shield, Suds				$ 7.01
37	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 288.04
38	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.40
39	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 27.21
40	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.40
41	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
42	3352282		Sensor, Inline				$ 66.68
43	3352944		Clip, Harness		Appelez-nous	-
44	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: W10242307)				$ 7.70
45	WP89503		Hose, Water Inlet (2) (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
45	WP89503		Hose, Water Inlet (2) (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
46	W10093726		Shield, Assembly Lower		Appelez-nous	-
47	W10000080		Rivet		Appelez-nous	-
48	WPW10110247		Control, Atc-iec   (Replaces: W10110247)				$ 129.44
49	8280503		Switch, Rotary		Appelez-nous	-
50	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 126.34
51	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 21.34
52	8317387		Fuse (in Harness)		Appelez-nous	-
53	WP8577375		Coupler, Drain Hose   (Replaces: 8577375)				$ 8.07
54	WP285655		Clamp, Hose (2)   (Replaces: 285655)			Immediately	$ 8.39
55	3363920A		Adapter, Drain Hose   (Replaces: 3363920)				$ 8.79

    View Diagram in Separate Window       Print Part List
