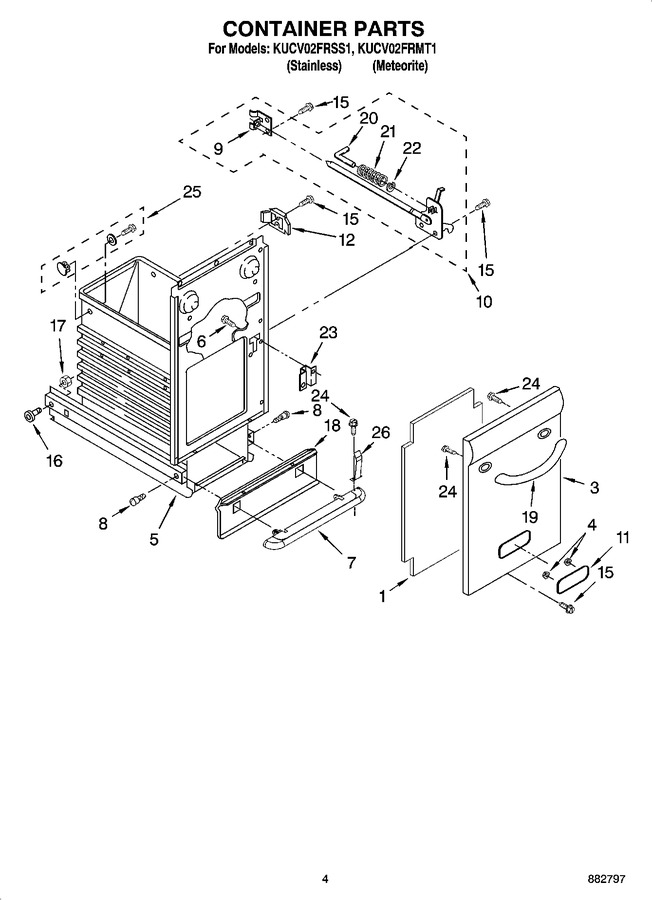

04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9872153		Insulation		Appelez-nous	-
3	9871988S		Panel, Container (includes 4 & 11) (stainless)		Appelez-nous	-
3	9871988M		Panel, Container (includes 4 & 11) (meteorite)		Appelez-nous	-
4	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 510.52
6	WPW10139210		Screw   (Replaces: 4152204)				$ 8.03
7	W11636605		Pedal, Foot   (Replaces: 9871989B)				$ 65.88
8	WP780263		Screw, Shoulder 8-32 X 3/8 (2)   (Replaces: 780263)				$ 8.34
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
11	8531788		Nameplate		Appelez-nous	-
12	9871125		Spring, Safety Switch				$ 29.37
15	WP489478		Screw, 8 X 1/2   (Replaces: 489478)				$ 8.18
16	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	WPW10242557		Plate, Toe Guard   (Replaces: 777328)				$ 142.53
19	9871914		Handle (includes Item 24)		Appelez-nous	-
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 93.80
22	W11679168		Ring, ``e``   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 62.39
24	246131		Screw, Handle		Appelez-nous	-
25	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
26	W10342596		Actuator Switch   (Replaces: 9871976)				$ 198.68
