SELECT A DIAGRAM
01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit

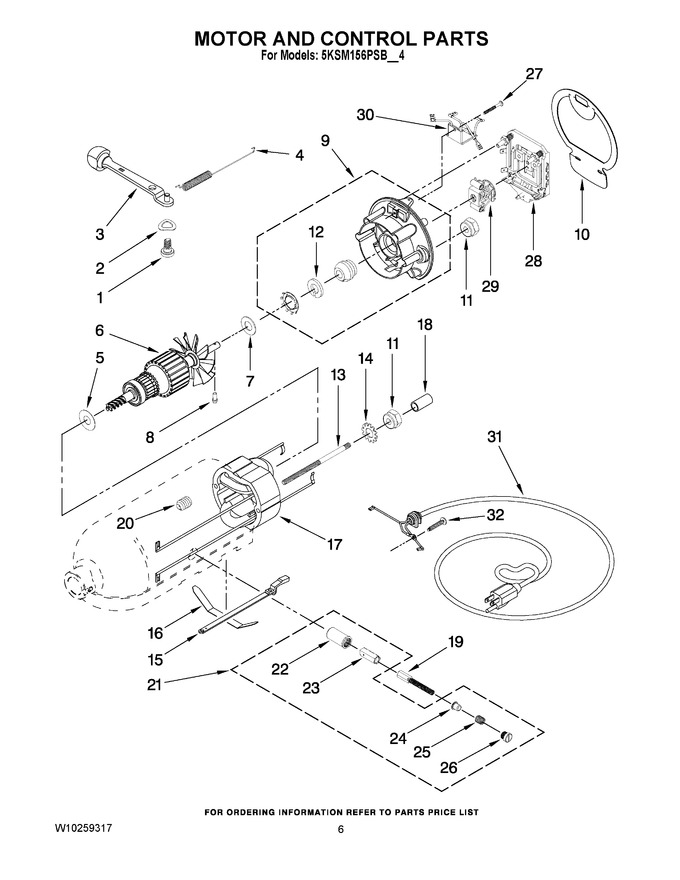

03 - Motor And Control Parts
04 - Base And Pedestal Unit
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 6011-006971 | Screw, Pivot (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 2 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 3 | WP9709276 | Control, Speed Assembly (black) (Replaces: 9709276) |
|
Immediately | $ 5.32 | ||||
| 4 | WP3183680 | Spring, Control Plate (Replaces: 3183680) |
|
$ 4.79 | |||||
| 5 | WP9704324 | Washer, Ball Bearing (front) (Replaces: 9704324) |
|
$ 4.72 | |||||
| 6 | W10900799 | Armature & Bearing (Replaces: 9708316) |
|
$ 71.82 | |||||
| 7 | W11233557 | Washer (Replaces: 3180162) |
|
$ 8.13 | |||||
| 8 | WP16998 | Stud, Governor Dr (Replaces: 16998) |
|
$ 4.82 | |||||
| 9 | WP3180526 | Bracket, Bearing Assembly (Replaces: 3180526) |
|
$ 20.80 | |||||
| 10 | WP240775-1 | Seal, End (Replaces: 3184356) |
|
Immediately | $ 5.12 | ||||
| 11 | WPW10131078 | Nut, 10-24 (Replaces: W10131078) |
|
$ 4.65 | |||||
| 12 | 3180238 | Washer, Felt |
|
- | |||||
| 13 | W10851015 | Screw, Stator (Replaces: 240769) |
|
$ 4.30 | |||||
| 14 | W11170663 | Washer (Replaces: W10068270) |
|
$ 4.54 | |||||
| 15 | W11557271 | Speed Link & Cam (Replaces: 3184176) |
|
Immediately | $ 8.47 | ||||
| 16 | WP240205 | Spring, Flat (Replaces: 240205) |
|
$ 4.99 | |||||
| 17 | WPW10417246 | Field Assembly (Replaces: 9701670) |
|
$ 48.47 | |||||
| 18 | W11210996 | Sleeve, Motor (Replaces: 4162634) |
|
- | |||||
| 19 | WPW10380496 | Brush, Carbon (Replaces: W10260958) |
|
Immediately | $ 4.25 | ||||
| 20 | W11176201 | Screw (Replaces: 9707926) |
|
$ 4.75 | |||||
| 21 | 4162546 | Brush Holder |
|
$ 23.37 | |||||
| 22 | WP3179908 | Housing, Brush Holder (Replaces: 3179908) |
|
$ 4.35 | |||||
| 23 | W11656718 | Insert, Brush Hldr (Replaces: 240680) |
|
$ 5.22 | |||||
| 24 | WP116286 | Cap, Spring Seat (Replaces: 116286) |
|
$ 4.77 | |||||
| 25 | WP116287 | Spring, Cap (Replaces: 116287) |
|
$ 4.84 | |||||
| 26 | WP3184212 | Cap, Brush Holder (black) (Replaces: 3184212) |
|
Immediately | $ 4.79 | ||||
| 27 | W11084238 | Screw (Replaces: W10068260) |
|
- | |||||
| 28 | WPW10119326 | Control Plate Assy (Replaces: W10119326) |
|
Immediately | $ 17.43 | ||||
| 29 | WPW10330804 | Governor Assembly (Replaces: 17830) |
|
Immediately | $ 16.39 | ||||
| 30 | W11174552 | Phase Control Brd (Replaces: W10217542) |
|
$ 16.31 | |||||
| 31 | W10908276 | Power Cord-black (Replaces: 9702315) |
|
- | |||||
| 32 | WP4159193 | Screw (Replaces: 3184086) |
|
$ 5.07 |
