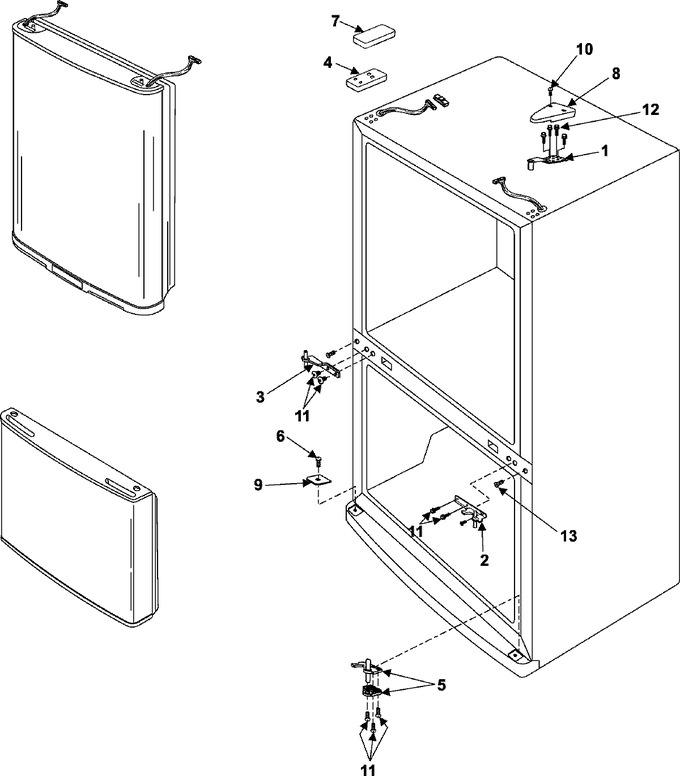

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02782A		Assy Hinge Upp;w2-05,t3.2				$ 48.00
2	DA63-50139C		Shim Hinge-mid				$ 2.78
2	DA97-02783A		Assy Hinge Mid;w2-05,t04				$ 56.56
2	DA61-02160A		Hinge-mid			Immediately	$ 52.34
3	DA97-02904A		Assy Hinge Mid-l				$ 62.31
3	DA61-02160A		Hinge-mid			Immediately	$ 52.34
3	DA63-02527A		Shim-hinge Upp		Appelez-nous	-
4	DA61-02161A		Hinge-upp				$ 34.52
5	DA61-02162A		Hinge Low				$ 12.35
6	6002-000458		Screw-tapping				$ 1.84
7	DA63-02520A		Cover Hinge-upp L				$ 14.00
8	DA63-02521A		Cover Hinge-upp R				$ 9.88
9	DA63-02530B		Cover Hinge-low				$ 2.26
10	6002-000213		Screw-tapping			Immediately	$ 1.03
11	6002-000213		Screw-tapping			Immediately	$ 1.03
12	DA60-10004A		Screw-tap Tite				$ 2.78
13	DA60-10123G		Screw-tap Tite		Appelez-nous	-
