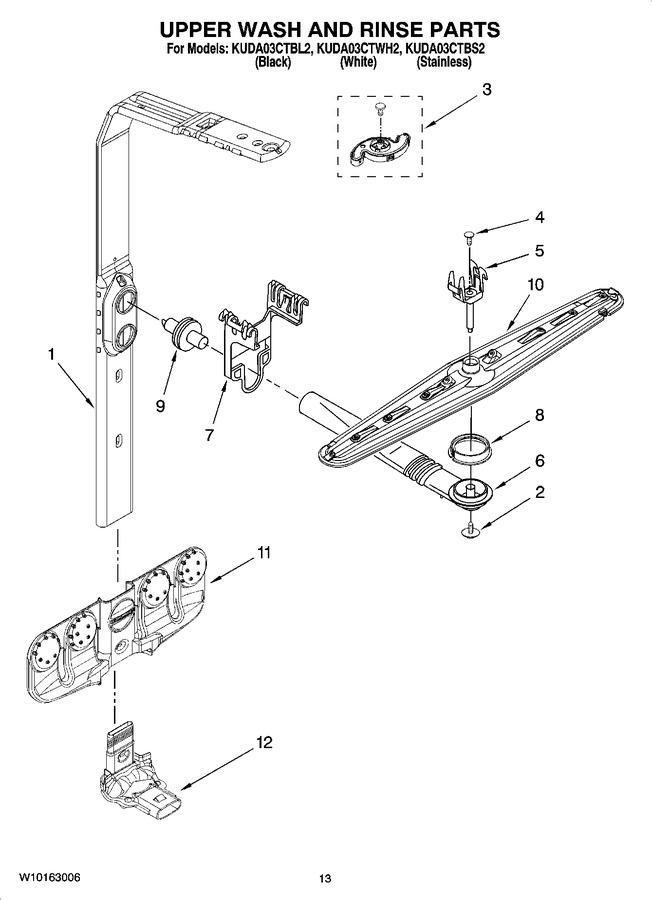

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10077859 | Feed Tube Assembly (also Includes Item 3) |
|
$ 69.30 | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | WPW10118464 | Fastener, Push-in (Replaces: W10118464) |
|
$ 11.18 | |||||
| 5 | WPW10082867 | Mount (Replaces: W10082867) |
|
$ 9.11 | |||||
| 6 | WPW10323424 | Manifold (Replaces: W10082949) |
|
Immediately | $ 60.98 | ||||
| 7 | W10082832 | Hanger |
|
$ 5.83 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | WPW10082831 | Nozzle-feed (Replaces: W10082831) |
|
Immediately | $ 48.24 | ||||
| 10 | WPW10082841 | Sprayarm (Replaces: W10082841) |
|
Immediately | $ 82.56 | ||||
| 11 | WPW10077600 | Manifold, Spray Zone (Replaces: W10077600) |
|
$ 112.17 | |||||
| 12 | W10077903 | Valve Assembly, Manifold |
|
$ 85.12 |
