01 - Cover Sheet
02 - Case, Gearing And Planetary Unit Parts
03 - Base And Pedestal Unit Parts
04 - Motor And Control Unit Parts

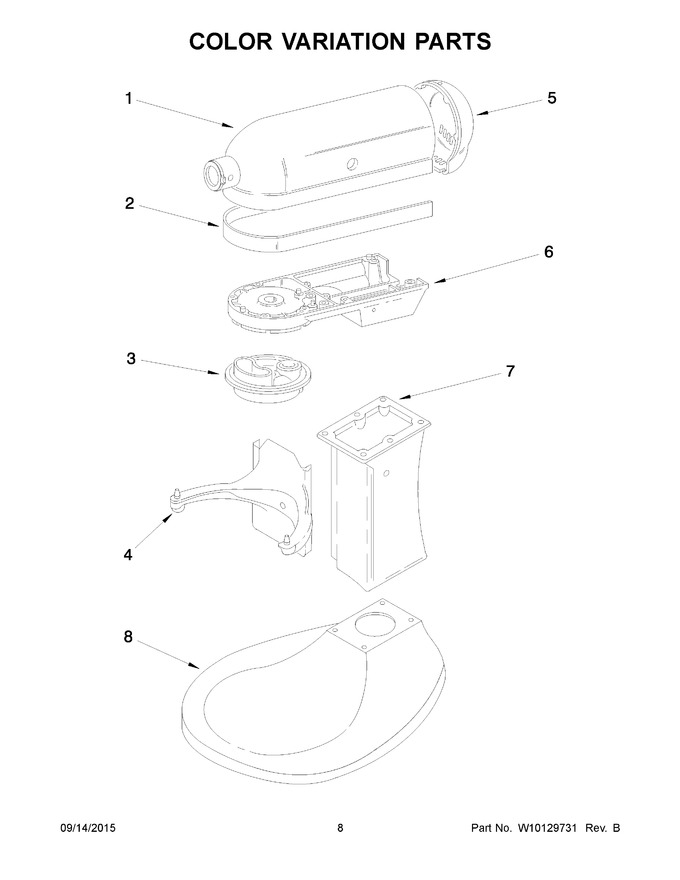

05 - Color Variation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 2 | 9705172 | Trim Band (black) |
|
- | |||||
| 3 | W11084831 | Planetary (empire Red) (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 4 | 3179318 | Bowl Support & Pins (empire Red) |
|
- | |||||
| 5 | W11084313 | End Cover (empire Red) (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 6 | 9704499 | Lower Gearcase (empire Red) |
|
- | |||||
| 7 | 9702393 | Column (empire Red) |
|
- | |||||
| 8 | 3179299 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 1A | 240291-20 | Motor Housing (majestic Yellow) |
|
- | |||||
| 3A | 240286-22 | Planetary (majestic Yellow) |
|
- | |||||
| 4A | 3179319 | Bowl Support & Pins (majestic Yellow) |
|
- | |||||
| 5A | 240253-21 | End Cover (majestic Yellow) |
|
- | |||||
| 6A | 9704501 | Lower Gearcase (majestic Yellow) |
|
- | |||||
| 7A | 9702394 | Column (majestic Yellow) |
|
- | |||||
| 8A | 9702409 | Base & Foot Assembly (majestic Yellow) (Replaces: 9704505) |
|
- |
