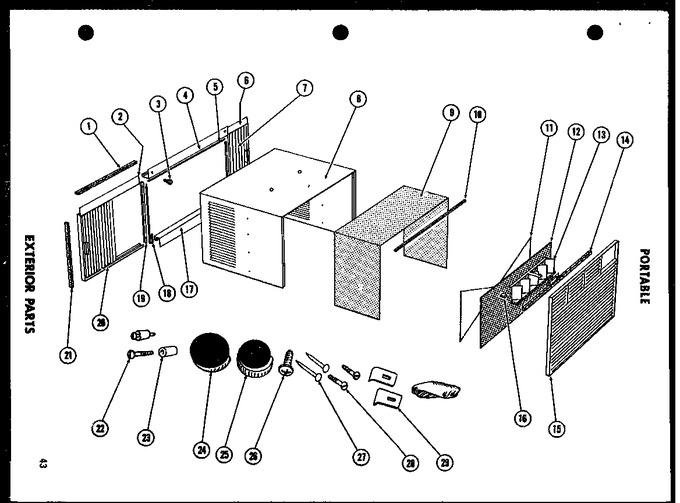

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3030313		Gasket (per Foot)		Appelez-nous	-
2	C5807004		Weldment, Sliding Frame, L.h.		Appelez-nous	-
3	M0234539		Thumb Screw		Appelez-nous	-
4	C5299401		Rail, Top		Appelez-nous	-
5	A3030310		Gasket (per Foot)		Appelez-nous	-
6	C5807003		Welmend, Sliding Frame, R.h.		Appelez-nous	-
7	D5403201		Curtain Mtg Assy		Appelez-nous	-
8	D5431401		Outer Case		Appelez-nous	-
9	B5150401		Insulation, Outer Case		Appelez-nous	-
10	A3030309		Gasket (per Foot)		Appelez-nous	-
11	A4542805		Retainer		Appelez-nous	-
12	A4635701		Filter		Appelez-nous	-
14	A3030329		Gasket-per Ft		Appelez-nous	-
15	D5402802		Front		Appelez-nous	-
17	B5149501		Rail		Appelez-nous	-
18	A3030301		Gasket (inch)		Appelez-nous	-
19	B5149601		Bakstrip		Appelez-nous	-
20	A3030326		Gasket		Appelez-nous	-
21	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
22	M0212062		Screw		Appelez-nous	-
23	A4065501		Spacer K		Appelez-nous	-
24	A3030302		Gasket		Appelez-nous	-
25	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
26	M0211532		Screw		Appelez-nous	-
27	M0010508		X$x Nail		Appelez-nous	-
28	M0236004		Screw		Appelez-nous	-
29	A4622201		Clamp		Appelez-nous	-
NI	M0234539		Thumb Screw		Appelez-nous	-
NI	M0211516		Screw A K		Appelez-nous	-
NI	B5150001		Plate, Back		Appelez-nous	-
NI	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
NI	W11233072		Screw   (Replaces: M0211631)			Immediately	$ 14.72
NI	M0212062		Screw		Appelez-nous	-
