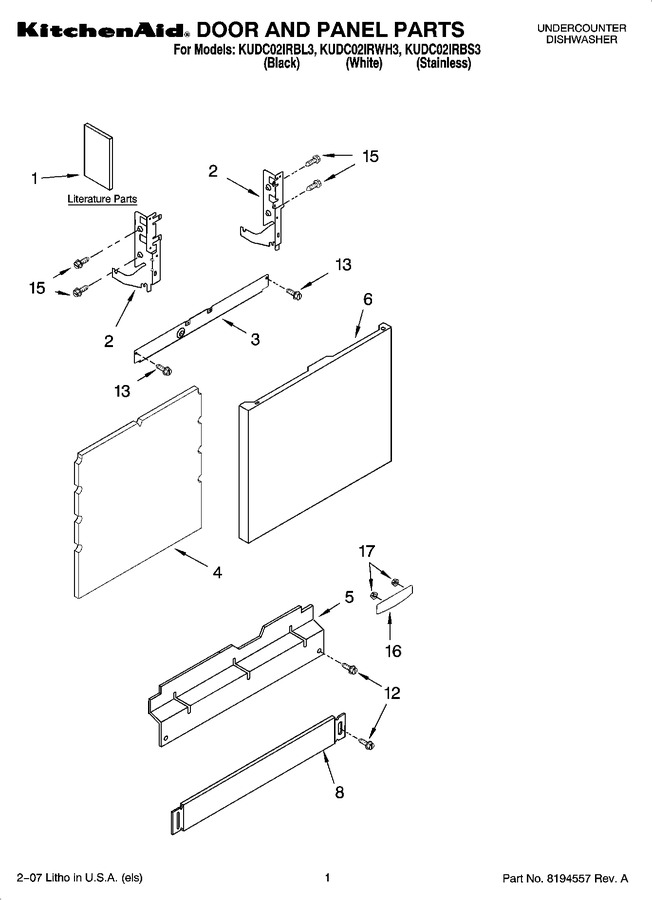

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10082651		Tech Sheet		Appelez-nous	-
1	8574116		Instructions, Installation		Appelez-nous	-
1	8564958		Guide, Use & Care Dvd		Appelez-nous	-
1	W10066080		Energy Guide		Appelez-nous	-
1	8574093		Guide, Use & Care		Appelez-nous	-
1	W10077954		Guide, Consumer Reference		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8564886		Stiffener, Door		Appelez-nous	-
4	WPW10073520		Insulation, Door   (Replaces: 8542577)				$ 96.23
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
6	8572692		Panel, Full Front (includes Items 16 & 17) (black)		Appelez-nous	-
6	W10301577		Panel, Full Front (includes Items 16 & 17) (stainless)   (Replaces: 8572695)				$ 399.50
6	8572693		Panel, Full Front (includes Items 16 & 17) (white)		Appelez-nous	-
8	W10871196		Toe Panel (black)   (Replaces: 8573286)				$ 174.04
8	WP8573287		Toe Panel (white)   (Replaces: 8573287)				$ 177.69
12	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 8.26
16	2209118W		Nameplate (white)		Appelez-nous	-
16	2005292		Nameplate (black)				$ 52.20
17	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
