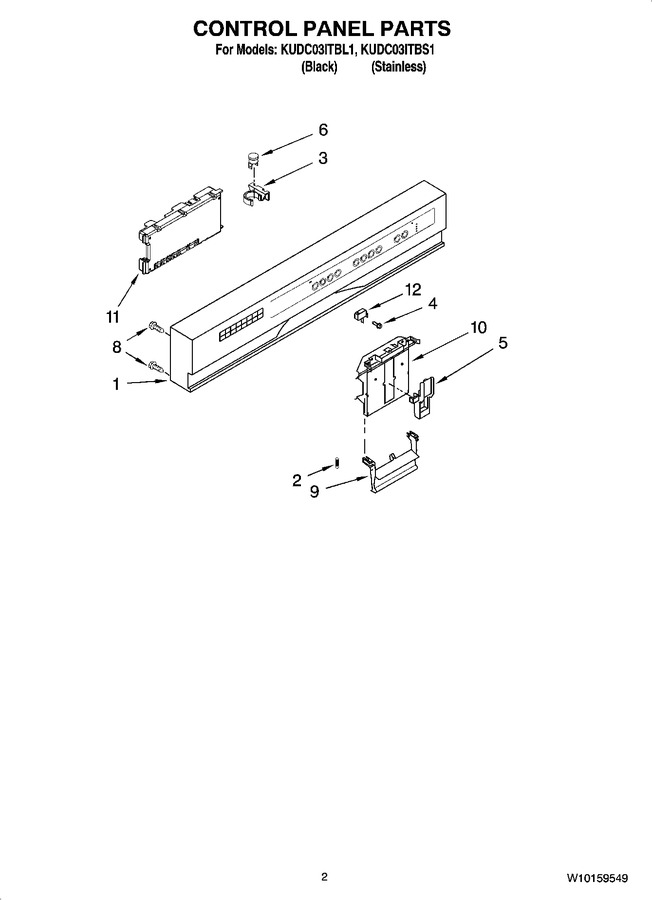

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10084152 | Console Assembly (includes Insert) (black) |
|
- | |||||
| 2 | WP8268540 | Spring, Handle (Replaces: 8268540) |
|
Immediately | $ 10.37 | ||||
| 3 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 4 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.94 | ||||
| 5 | WP8524471 | Actuator, Latch (Replaces: 8524471) |
|
Immediately | $ 101.28 | ||||
| 6 | W10258275 | Bi-metal (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 8 | WPW10348409 | Screw (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 9 | WP8269117 | Handle, Latch (black) (Replaces: 8269117) |
|
Immediately | $ 102.64 | ||||
| 10 | 8193882 | Bolt, Latch (Replaces: 8524476) |
|
Immediately | $ 114.47 | ||||
| 11 | WPW10084142 | Control, Electronic (Replaces: W10084142) |
|
Immediately | $ 215.18 | ||||
| 12 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 43.30 |
