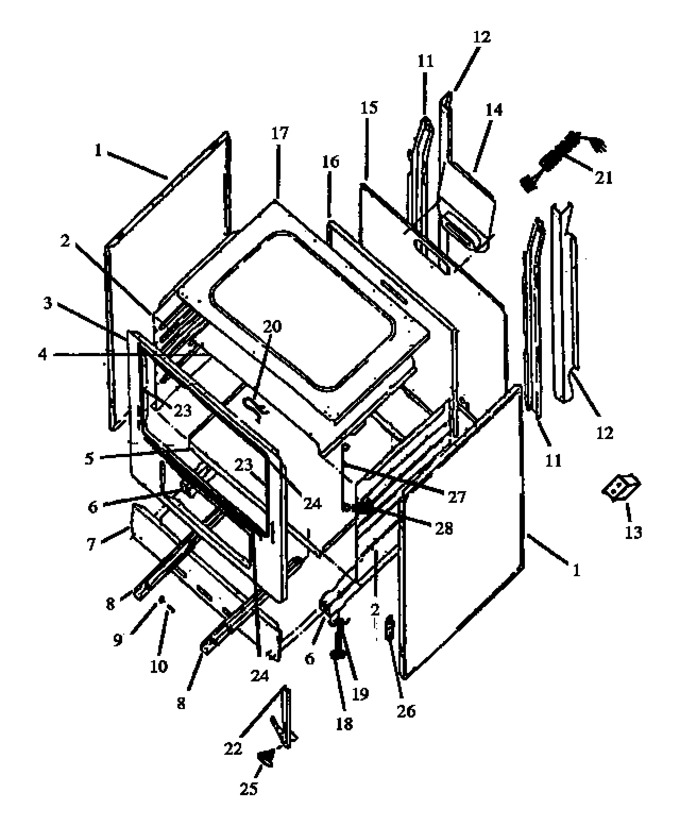

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313762W		Panel, Texture Body		Appelez-nous	-
2	0311807		Liner,oven Side		Appelez-nous	-
3	310100E		Main Front, 20`` Elec.		Appelez-nous	-
4	Y06470701E		Liner, Oven Top		Appelez-nous	-
5	Y0311049		Bottom Baffle		Appelez-nous	-
6	06554900		Rail, Base		Appelez-nous	-
7	Y06451502		Panel, Base Toe 20``		Appelez-nous	-
8	Y0313761		Track, Lower R.h.		Appelez-nous	-
8	Y0313760		Track, Lower L.h.		Appelez-nous	-
11	0052742		Vertical Sup. (j)		Appelez-nous	-
12	0056477		Support, Rear, Vertical {j}		Appelez-nous	-
13	07687600		Kit, Anti-tip		Appelez-nous	-
14	0310821		Flue Box		Appelez-nous	-
15	Y0056454		Main Back		Appelez-nous	-
16	310103E		Liner Oven Back		Appelez-nous	-
17	Y06468901E		Bottom, Brnr Box 20``		Appelez-nous	-
18	Y0062362		Leg, Leveling		Appelez-nous	-
19	Y0088571		Snap-in Tee Nut		Appelez-nous	-
20	0310802		Clip, Capillary		Appelez-nous	-
21	0313772		Ass`y Power Cord		Appelez-nous	-
22	Y0311397		Hinge, Door (j)		Appelez-nous	-
23	Y0056090		Seal, Oven-sides		Appelez-nous	-
24	Y0056494		Seal, Oven Door-top		Appelez-nous	-
25	0310233		Screw (j)		Appelez-nous	-
25	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
26	Y06557300		Shield, Bodyside		Appelez-nous	-
27	0087023		Support Rod		Appelez-nous	-
28	0088779		Shoulder Screw		Appelez-nous	-
