01 - Backguard Assy


02 - Broiler Components


03 - Cabinet Assy


04 - Lower Oven Components


05 - Oven Door Assy


06 - Top And Top Burner Assy

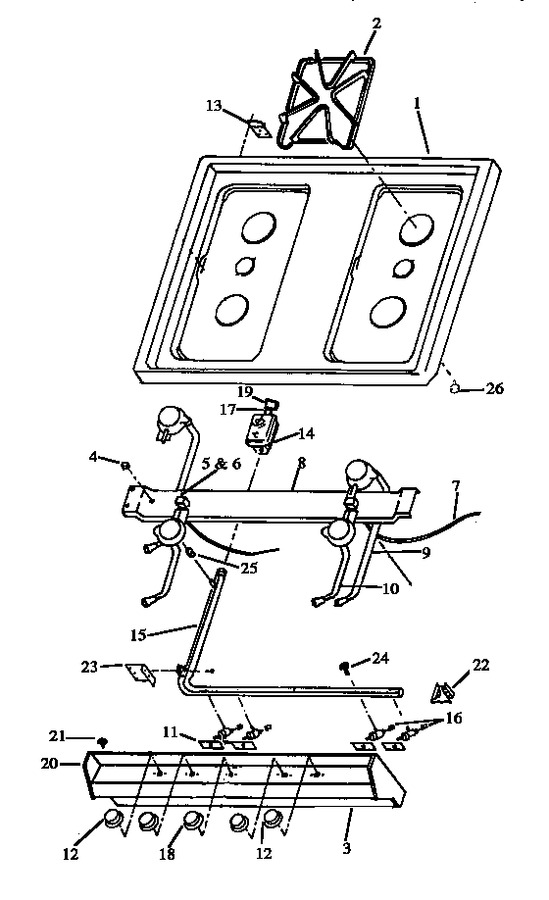

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y06461210W		Top, Main 24`` (white)		Appelez-nous	-
2	301490B		Grate, Delux		Appelez-nous	-
3	07588802		Manifold Panel		Appelez-nous	-
4	0088650		Square Nut {j}		Appelez-nous	-
5	Y0312158		Ignitor, Ground Strap		Appelez-nous	-
6	Y0056084		Igniter-spk, Top Burner		Appelez-nous	-
7	Y0056083		Igniter-spk, Top Burner		Appelez-nous	-
8	Y06451809		Support, Top Burner		Appelez-nous	-
9	Y07699200		Burner - Top Rear (cal)				$ 91.96
10	Y07699100		Burner - Top Front (cal)				$ 79.99
11	WP4157180		Switch, Spark Valve   (Replaces: Y0088874)				$ 119.66
12	Y0055027		Knob, Top Burner		Appelez-nous	-
13	0088782		Hinge, Main Top		Appelez-nous	-
14	Y0088783		Pressure Regulator		Appelez-nous	-
15	0056107		Manifold Square Pipe (code Az)		Appelez-nous	-
16	Y0056117		Valve, Top Burner 90 Deg-sq Ma		Appelez-nous	-
17	Y07580100		Nipple, Pipe 1 1/8``		Appelez-nous	-
18	Y0055029		Knob, Thermostat		Appelez-nous	-
19	07580200		Coupling, Reduction		Appelez-nous	-
20	0086976		End Cap, Rh		Appelez-nous	-
20	0086975		End Cap, Lh		Appelez-nous	-
21	0312238		Screw		Appelez-nous	-
22	0056118		Support-sq Manifold Pipe-rh		Appelez-nous	-
23	0086725		Support, Manifold, L.h. {j}		Appelez-nous	-
24	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
25	0310219		Spacer, Manifold		Appelez-nous	-
26	Y0063661		Bumper, Oven Door		Appelez-nous	-
