01 - Door And Panel, Literature


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Optional

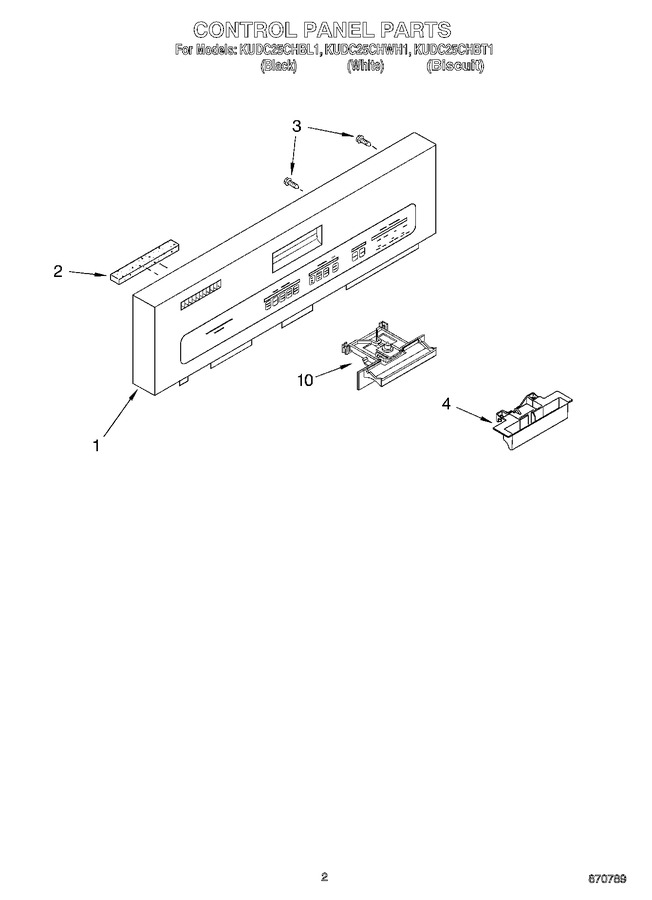

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9744116		Console, Complete (black Mdl.)		Appelez-nous	-
1	9744117		Console, Complete (white Mdl.)		Appelez-nous	-
1	9744119		Console, Complete (biscuit Mdl.)		Appelez-nous	-
2	8051305		Sponge, Vent		Appelez-nous	-
3	WPW10348409		Screw (4)   (Replaces: 3369051)			Immediately	$ 8.20
4	3380663		Handle, Latch (white Mdl.)		Appelez-nous	-
4	3380662		Handle, Latch (black Mdl.)		Appelez-nous	-
4	9744052		Handle, Latch (biscuit Mdl.)		Appelez-nous	-
10	9744053		Latch Lever Asm. (biscuit)		Appelez-nous	-
10	3380655		Latch Lever Asm. (black)				$ 54.95
10	3380656		Latch Lever Asm. (white)		Appelez-nous	-
