SELECT A DIAGRAM

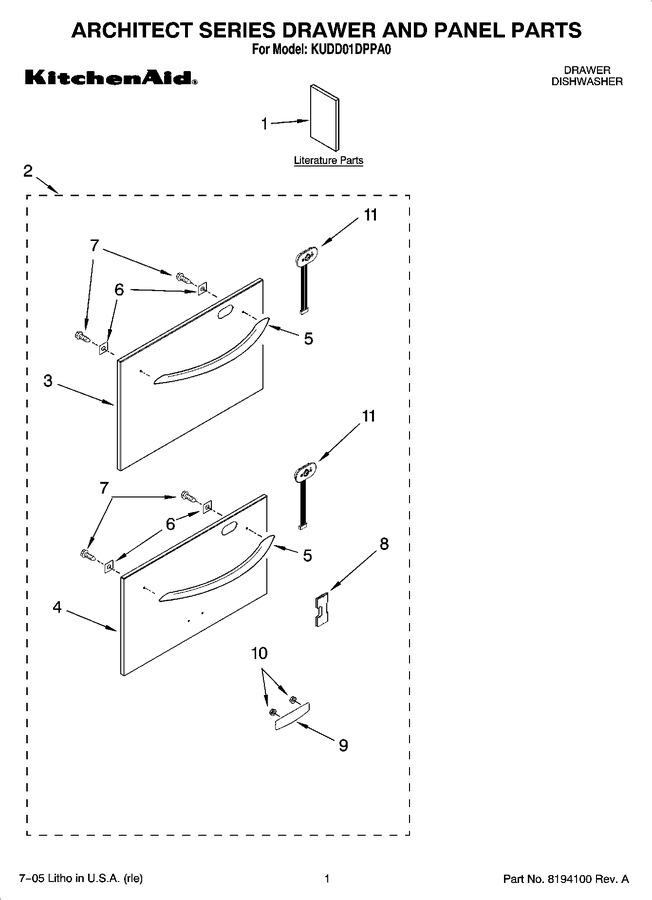

01 - Architect Series Drawer And Panel Parts


02 - Pro Line Series Drawer And Panel Parts


03 - Cabinet Parts


04 - Lid And Link Assembly


05 - Drawer Parts


06 - Dishrack Parts


07 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8194119		Energy Guide		Appelez-nous	-
1	8546449		Tech Sheet		Appelez-nous	-
1	8546429		Instructions, Operating		Appelez-nous	-
1	8546426		Dvd		Appelez-nous	-
1	8546448		Instructions, Installation		Appelez-nous	-
2	8546415		Drawer Panels Complete (black)		Appelez-nous	-
2	8546416		Drawer Panels Complete (white)		Appelez-nous	-
2	8546417		Drawer Panels Complete (stainless Steel)		Appelez-nous	-
3	8546377		Panel, Drawer Upper (white)		Appelez-nous	-
3	8546351		Panel, Drawer Upper (stainless Steel)		Appelez-nous	-
3	8546376		Panel, Drawer Upper (black)		Appelez-nous	-
4	8546380		Panel, Drawer Lower (white)		Appelez-nous	-
4	8546352		Panel, Drawer Lower (stainless Steel)		Appelez-nous	-
4	8546379		Panel, Drawer Lower (black)		Appelez-nous	-
5	8544408		Handle (white)		Appelez-nous	-
5	8557792		Handle (stainless Steel)				$ 67.80
5	8524407		Handle (black)				$ 77.85
6	9744437		Plate, Backing				$ 20.09
7	3400067		Screw				$ 35.58
8	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
9	2209118W		Nameplate (white)		Appelez-nous	-
9	2005292		Nameplate (black)				$ 52.20
10	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
11	8546392		Control (grey)		Appelez-nous	-
11	8546390		Control (black)		Appelez-nous	-
11	8546389		Control (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
