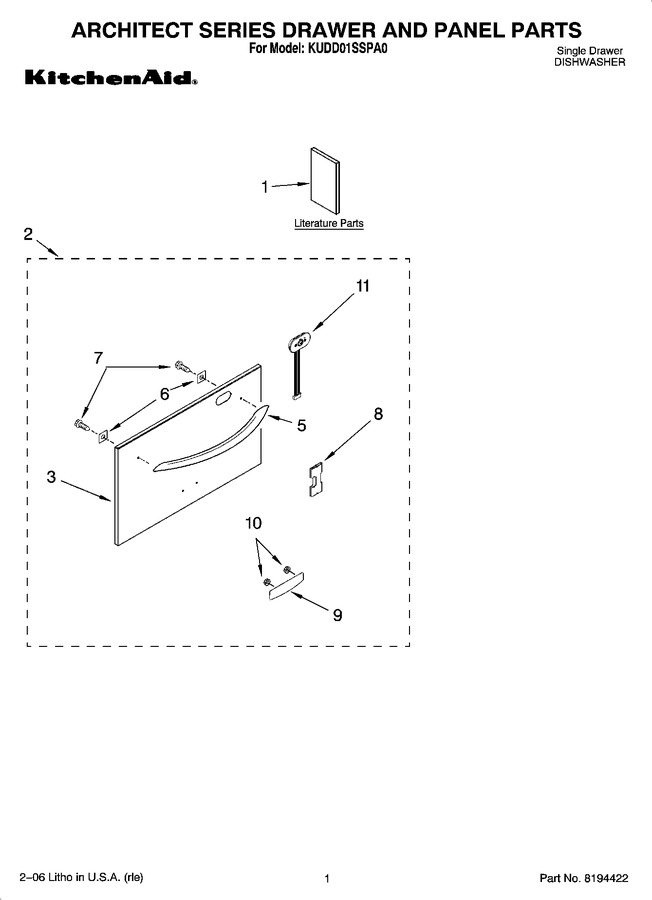

01 - Architect Series Drawer And Panel Parts
02 - Cabinet Parts
03 - Lid And Link Assembly
04 - Drawer Parts
05 - Dishrack Parts
06 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8546449 | Tech Sheet |
|
- | |||||
| 1 | 8194421 | Energy Guide |
|
- | |||||
| 1 | 8573753 | Guide, Use & Care |
|
- | |||||
| 1 | 8533714 | Instructions, Installation |
|
- | |||||
| 1 | 8573714 | Instructions, Panel Installation |
|
- | |||||
| 1 | 8546426 | Dvd |
|
- | |||||
| 2 | 8573747 | Drawer Panels Complete (stainless Steel) |
|
- | |||||
| 2 | 8573748 | Drawer Panels Complete (black) |
|
- | |||||
| 2 | 8573749 | Drawer Panels Complete (white) |
|
- | |||||
| 2 | 8573750 | Drawer Panels Complete (custom Panel Ready) |
|
- | |||||
| 3 | 8573738 | Panel, Drawer (black) |
|
- | |||||
| 3 | 8573739 | Panel, Drawer (white) |
|
- | |||||
| 3 | 8573736 | Panel, Drawer (stainless Steel) |
|
- | |||||
| 5 | 8557792 | Handle (stainless Steel) |
|
$ 67.80 | |||||
| 5 | 8524407 | Handle (black) |
|
$ 77.85 | |||||
| 5 | 8524408 | Handle (white) |
|
- | |||||
| 6 | 9744437 | Plate, Backing |
|
$ 20.09 | |||||
| 7 | 3400067 | Screw |
|
$ 35.58 | |||||
| 8 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 | |||||
| 9 | 2209118W | Nameplate (white) |
|
- | |||||
| 9 | 2005292 | Nameplate (black) |
|
$ 52.20 | |||||
| 10 | WP2004333 | Nut (Replaces: 2004333) |
|
$ 11.24 | |||||
| 11 | 8572997 | Control (grey) |
|
- | |||||
| 11 | 8572999 | Control (black) |
|
$ 96.34 | |||||
| 11 | 8572998 | Control (white) |
|
- |
