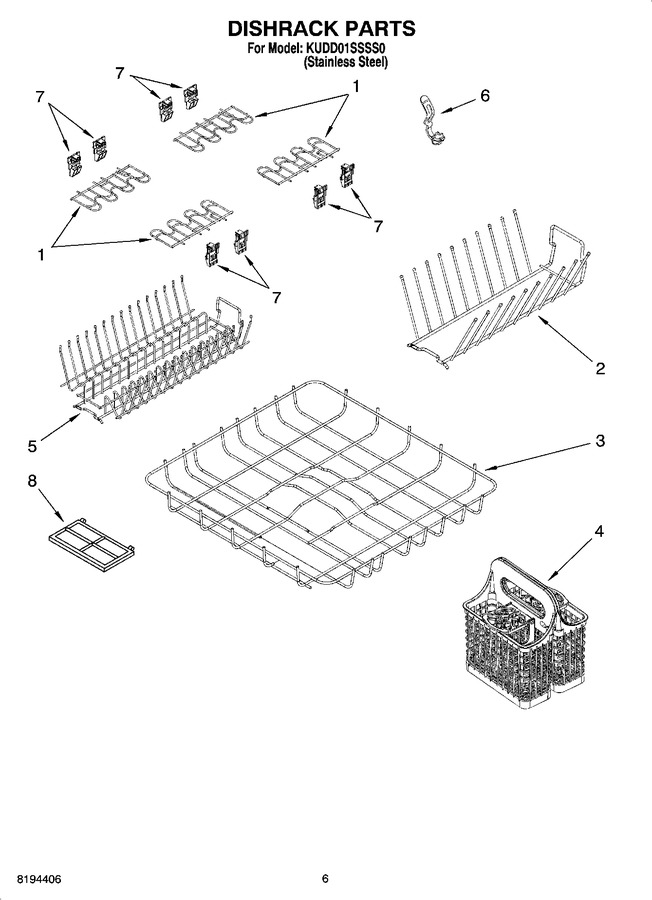

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8194410 | Cupshelf |
|
- | |||||
| 2 | 8194411 | Rack, Plate |
|
- | |||||
| 3 | WPW10525218 | Dishrack (Replaces: 8194412) |
|
$ 334.07 | |||||
| 4 | 8546363 | Basket, Silverware |
|
- | |||||
| 5 | 8194413 | Rack, Glasses |
|
- | |||||
| 6 | 8194414 | Clip, No-flip |
|
- | |||||
| 7 | 8546414 | Clip, Cupshelf |
|
- | |||||
| 8 | 8194135 | Door, Access Drain Filter |
|
$ 45.38 |
