01 - Broiler Drawer Assy


02 - Cabinet Assy

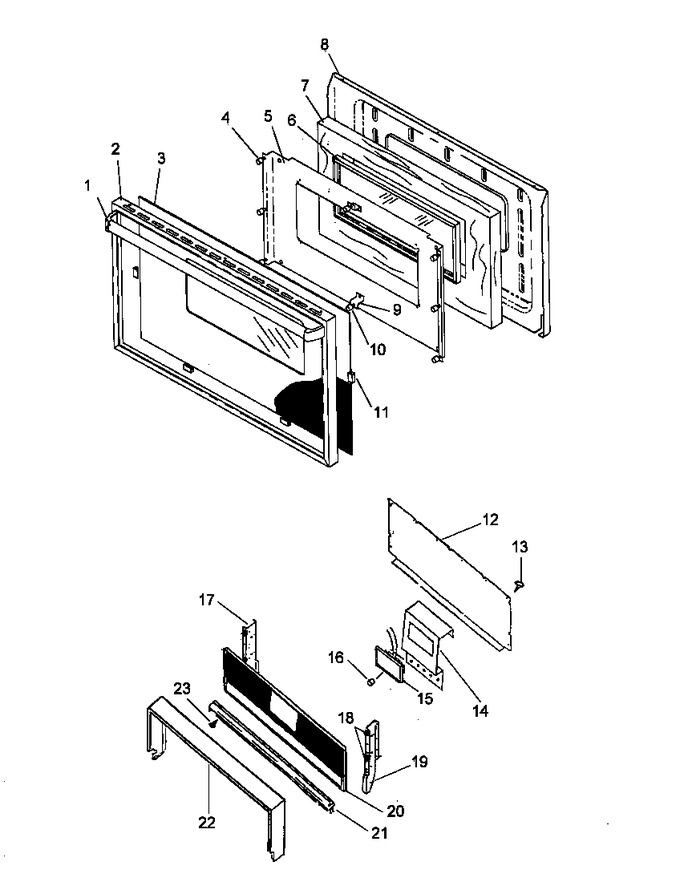

03 - Oven Components


04 - Oven Door And Backguard Assy


05 - Top Burner Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0057315		Handle, Door (j)		Appelez-nous	-
2	Y0312047		Frame, Oven Door, 30`` {j}		Appelez-nous	-
3	Y0312051		Glass, Oven Door 30``		Appelez-nous	-
4	Y02068100		Bumper-rubber 1/4``		Appelez-nous	-
5	06511800		Baffle, Oven Door		Appelez-nous	-
6	Y07729700		Window, Oven Door (2) Pane		Appelez-nous	-
7	Y0095197		Insulation,wrapper		Appelez-nous	-
8	06540800E		Weld, Door Liner		Appelez-nous	-
9	Y0311752		Bracket, Bumper Mount {j}		Appelez-nous	-
10	Y02068200		Bumper-rubber 1/4``		Appelez-nous	-
11	Y0312836		Bumper ``l`` Shaped		Appelez-nous	-
12	Y0310450		Wire Cover, 8``		Appelez-nous	-
13	0310234		Screw No.10 X 5/16		Appelez-nous	-
14	Y0311034		Clock Bracket		Appelez-nous	-
15	0310441		X Clock		Appelez-nous	-
16	314923B		Knob, Clock		Appelez-nous	-
17	Y0311039		Backguard Support-l.h.		Appelez-nous	-
18	Y02068100		Bumper-rubber 1/4``		Appelez-nous	-
19	Y0311038		Backguard Support-rh		Appelez-nous	-
20	Y0310506		Glass, Backguard, 8``		Appelez-nous	-
21	Y02332026B		Base-bkgd,36``w/holes		Appelez-nous	-
22	Y0310470		Frame, Backguard 8``		Appelez-nous	-
23	Y01001303		Screw-no.10x9/16 Decr,bl		Appelez-nous	-
NI	0087709		Screw		Appelez-nous	-
NI	0055047		Screw		Appelez-nous	-
NI	WP8281236		Screw {j}   (Replaces: Y0086727)				$ 8.16
NI	07596600		Screw No.10		Appelez-nous	-
NI	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
NI	Y0310804		Screw No.10 X 1/2``		Appelez-nous	-
