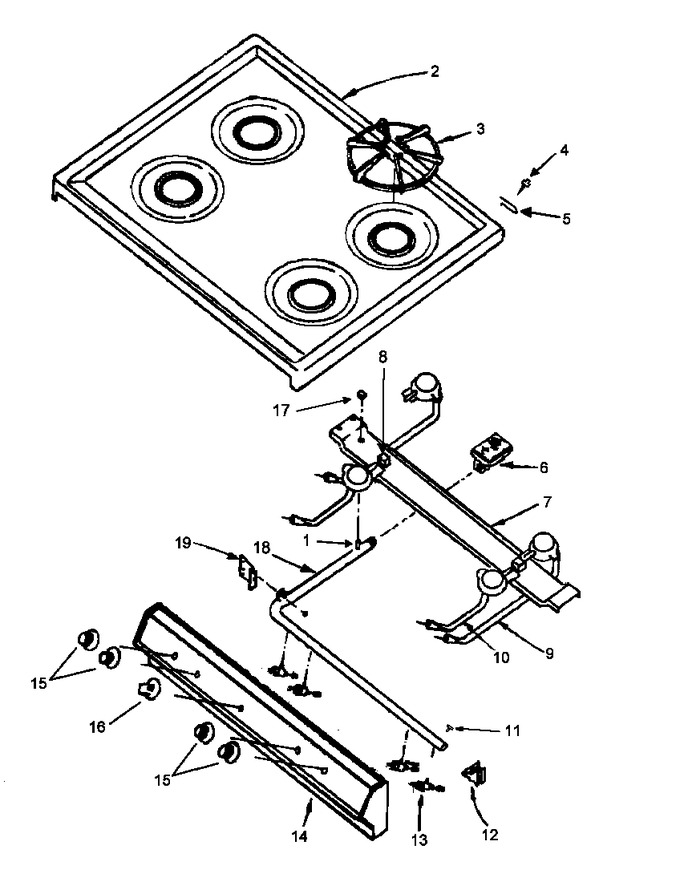

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	057241W		Main Top, White		Appelez-nous	-
3	Y07540300		Grate, 7`` Round Burner		Appelez-nous	-
4	Y0310036		Screw, Stud		Appelez-nous	-
5	Y0310032		Nut, Speed, Flat		Appelez-nous	-
6	Y0088783		Pressure Regulator		Appelez-nous	-
7	Y0312239		Burner Support		Appelez-nous	-
8	0057313		Pilot Tip (j)		Appelez-nous	-
9	Y07698900		Burner - Top Rear (glwd)		Appelez-nous	-
10	Y07698800		Burner - Top Frt (glwd)		Appelez-nous	-
11	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
12	Y00000000		See Note Brkt-mnfd Pipe,sq		Appelez-nous	-
13	Y0057338		Valve, Top Burner		Appelez-nous	-
14	Y07622003A		Panel, Manifold (gas 30)		Appelez-nous	-
15	Y0311080		Knob, Top Burner		Appelez-nous	-
16	Y0310525		Knob, T-stat (gasr		Appelez-nous	-
17	0088650		Square Nut {j}		Appelez-nous	-
18	Y07594502F		Pipe, Manifold (gas 30)		Appelez-nous	-
NI	Y0311900		Screw, No.10-12 X 50		Appelez-nous	-
NI	Y0088793		Tubing, Top Burner Pilot		Appelez-nous	-
NI	0311054		Pilot Filter		Appelez-nous	-
