01 - Backguard
02 - Broiler Drawer Assy
03 - Cabinet Assy
04 - Oven Components
05 - Oven Door
06 - Top Burner Assy
SELECT A DIAGRAM
New Model Search:

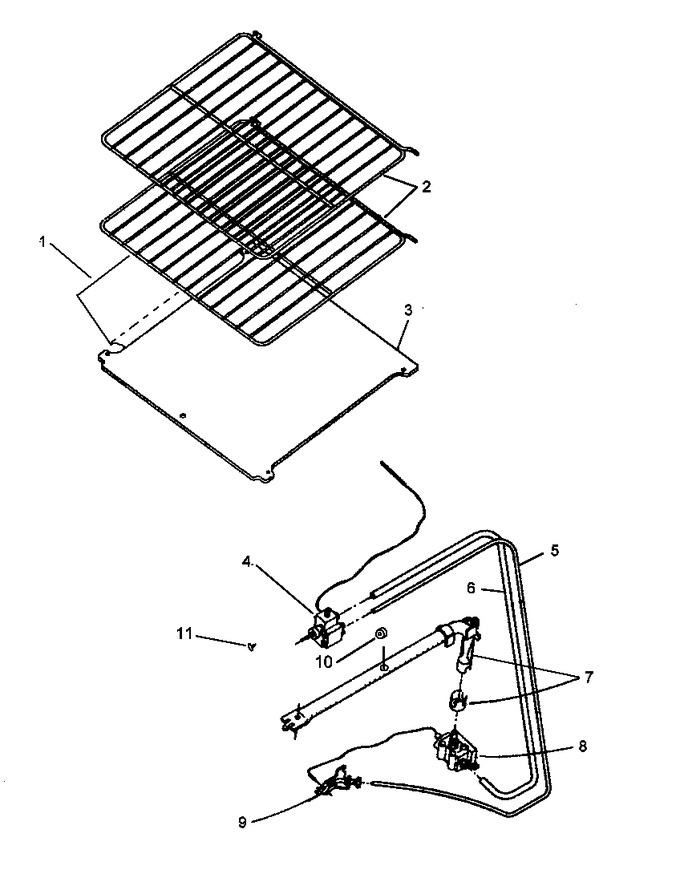

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 06497102 | Spreader, Flame W/o Notch |
|
- | |||||
| 2 | Y0312237 | Rack, Oven, 30`` |
|
- | |||||
| 3 | 06554403E | Bottom, Oven (enamel) |
|
- | |||||
| 4 | Y0057346 | Thermostat, Pilot W/bolts |
|
- | |||||
| 5 | Y03022901 | Tubing, Oven Pilot 3/16`` X 53`` |
|
- | |||||
| 6 | Y0090761 | Tubing, 3/8`` Od, 10 Ft. |
|
- | |||||
| 7 | 0311865 | Oven Burner |
|
- | |||||
| 8 | Y0089062 | Safety Valve |
|
- | |||||
| 9 | Y07697200 | Pilot, Oven Burner (standing) |
|
- | |||||
| 10 | M0282009 | Nut |
|
$ 14.07 | |||||
| 11 | Y0056114 | Bolt, T`stat Mtg (h/w) |
|
- | |||||
| NI | WP4159193 | Screw,philip Pan Hd 10-24x5/16 (Replaces: Y0310611) |
|
$ 5.07 |
