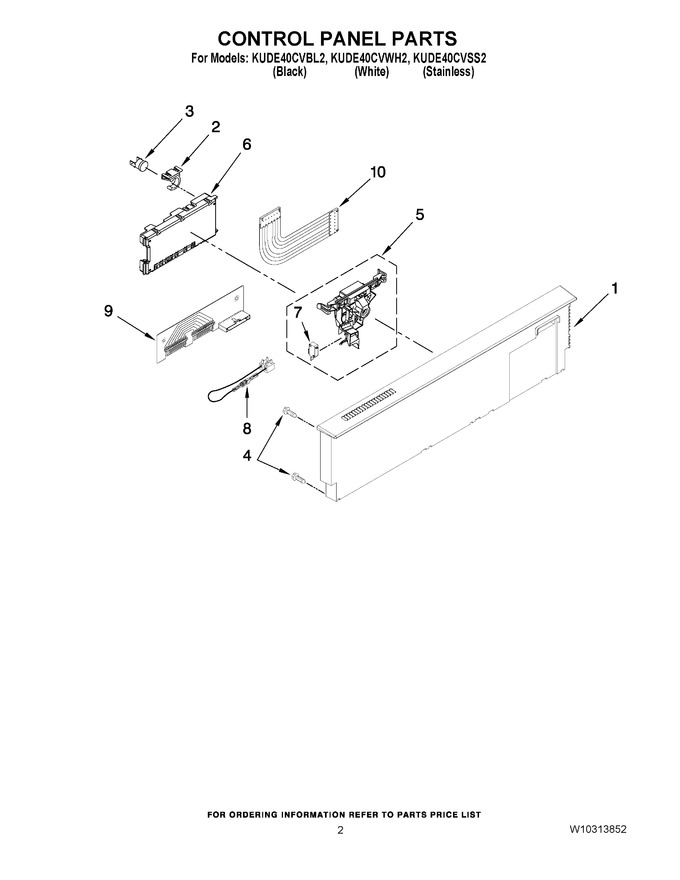

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8572354 | Console Assembly (black) (Replaces: W10238449) |
|
$ 400.64 | |||||
| 1 | W10238450 | Console Assembly (white) |
|
- | |||||
| 1 | W10238451 | Console Assembly (stainless) |
|
- | |||||
| 2 | 8546546 | Clip, Bi-metal |
|
$ 7.82 | |||||
| 3 | W10258275 | Bi-metal (Replaces: 661663) |
|
Immediately | $ 41.71 | ||||
| 4 | WPW10348413 | Screw (Replaces: 3400815) |
|
Immediately | $ 8.41 | ||||
| 5 | WPW10404412 | Latch Assembly (Replaces: W10077360) |
|
Immediately | $ 85.50 | ||||
| 6 | WPW10285178 | Control, Electronic (Replaces: W10056352) |
|
$ 263.40 | |||||
| 7 | W10255029 | Switch, Door |
|
- | |||||
| 8 | WPW10083167 | Fuse In-line (Replaces: W10083167) |
|
$ 69.77 | |||||
| 9 | WP8531873 | Interconnect (Replaces: 8531873) |
|
Immediately | $ 190.07 | ||||
| 10 | 8531877 | Ribbon Cable |
|
$ 66.48 |
