Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10300929 Guide, Use & Care (spanish) Appelez-nous -
1 W10195614 Tech Sheet/french Appelez-nous -
1 W10300928 Guide, Use & Care (english/french) Appelez-nous -
1 W10275503 Instructions, Installation Appelez-nous -
1 W10300935 Energy Guide Appelez-nous -
1 W10195613 Tech Sheet/english Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

6 WPW10195874 Panel, Full Front (includes Items 4, 10 & 16) (stainless)   (Replaces: W10195874) Special Order $ 396.59

7 W10320946 Screw Appelez-nous -
8 W10871196 Toe Panel (includes Items 11 & 18) (black)   (Replaces: W10205336) Special Order $ 174.04

9 W10195855 Handle Assembly (stainless) Appelez-nous -
10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 11.21

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Panel Control   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 WPW10320959 Nameplate (stainless)   (Replaces: W10320959) Special Order $ 102.43

17 W11126003 Insulation Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

18 W10831329 Insulation Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30

19 3400062 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

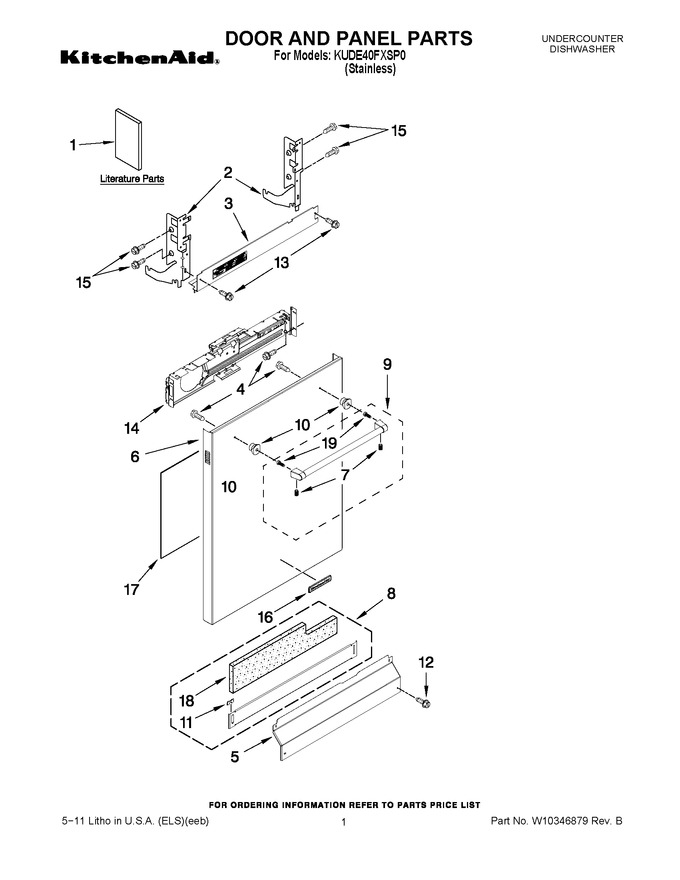

Diagram for KUDE40FXSP0
