View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

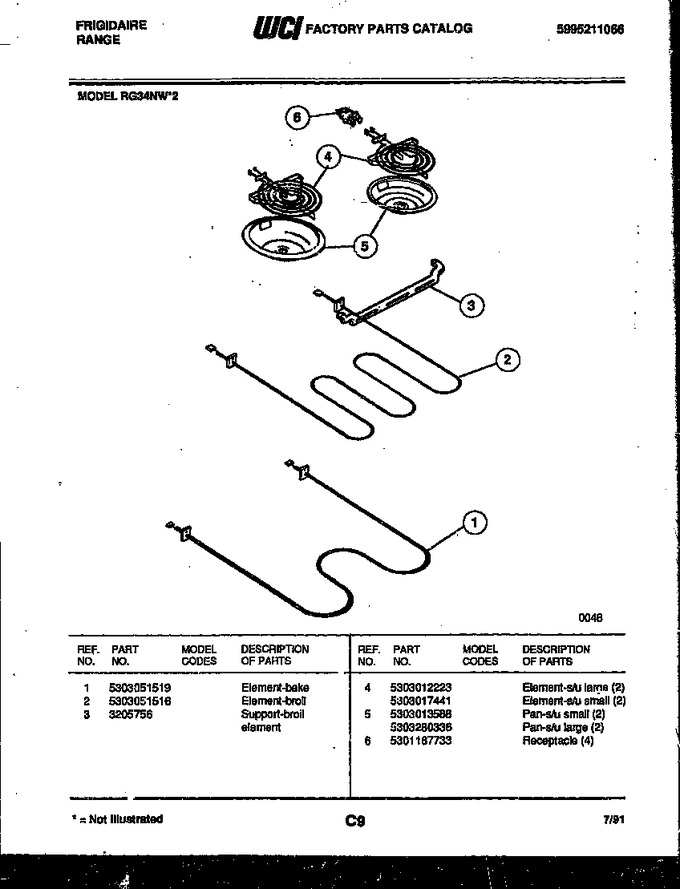

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303051519 | Element-bake |
|
Immediately | $ 49.67 | ||||
| 2 | 5303051516 | Element-broil |
|
$ 210.26 | |||||
| 3 | 3205756 | Support-broil Element |
|
- | |||||
| 4 | 316442301 | Element-s/u Large (2) (Replaces: 5303012223) |
|
Immediately | $ 49.32 | ||||
| 5 | 316048413 | Pan-s/u Small (2) (Replaces: 5303013588) |
|
Immediately | $ 10.94 | ||||
| 6 | 5303935058 | Receptacle (4) (Replaces: 5301167733) |
|
Immediately | $ 15.34 | ||||
| 4A | 5303017441 | Element - S/u Small (2) |
|
- | |||||
| 5A | 316048414 | Pan-s/u Large (2) (Replaces: 5303280336) |
|
Immediately | $ 17.90 |
