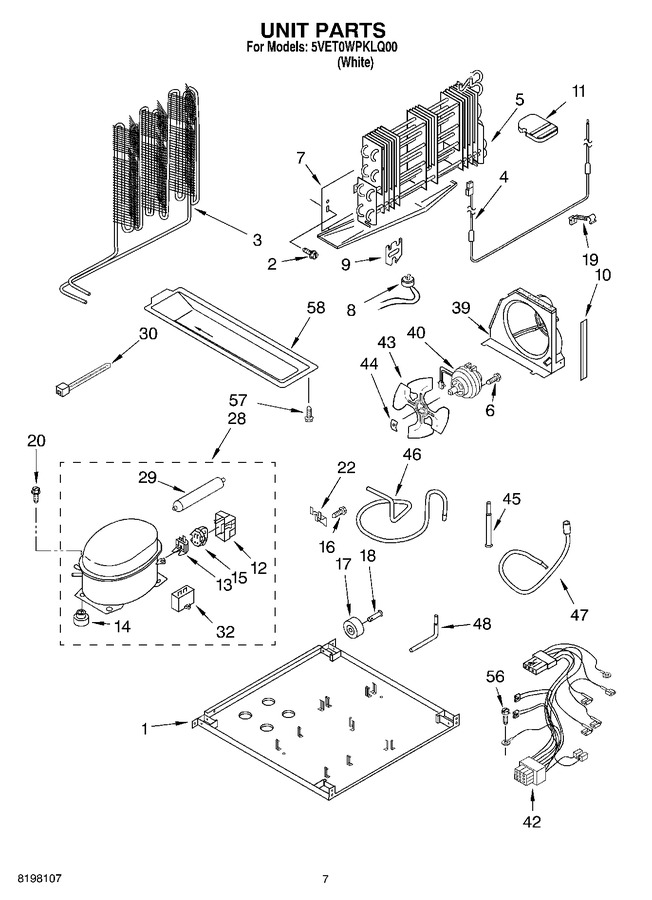

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205341		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2212599		Condenser		Appelez-nous	-
4	2166657		Heater, Defrost		Appelez-nous	-
5	2195391		Evaporator Assy.		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.19
7	2172619		Drain Pan		Appelez-nous	-
8	WP2182381		Defrost Bimetal   (Replaces: 2182381)				$ 120.14
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	2201184		Support Block				$ 6.43
12	WP61002138		Cover (service Only)   (Replaces: 4387959)				$ 8.77
13	2169410		Overload (service Only)   (Replaces: 4387962)				$ 100.28
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
15	2204308		Start-device Combination (start Relay And Overload For Production Compressor Only)		Appelez-nous	-
16	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
22	2166683		Clip		Appelez-nous	-
28	2187203		Compressor (includes Items 12,13,14,29 & 32) (also Order		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 86.33
28	482801		Installation Kit				$ 119.50
29	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
32	2210329		Capacitor (production)		Appelez-nous	-
32	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 128.97
39	2188262		Air Baffle		Appelez-nous	-
40	8201703		Motor, Condenser   (Replaces: 2188539)				$ 354.00
42	2187410		Wire Assembly, Unit		Appelez-nous	-
43	2190685		Fan, Blade				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
45	2212603		Tube, Transition		Appelez-nous	-
46	2205533		Tube, Discharge		Appelez-nous	-
47	2214924		Tube, Suction				$ 98.29
48	2154109		Tube, Process				$ 72.63
56	WP489128		Screw   (Replaces: 488500)				$ 10.88
57	3400518		Screw				$ 12.98
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	2210451		Evaporator Tray				$ 66.37
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
