SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

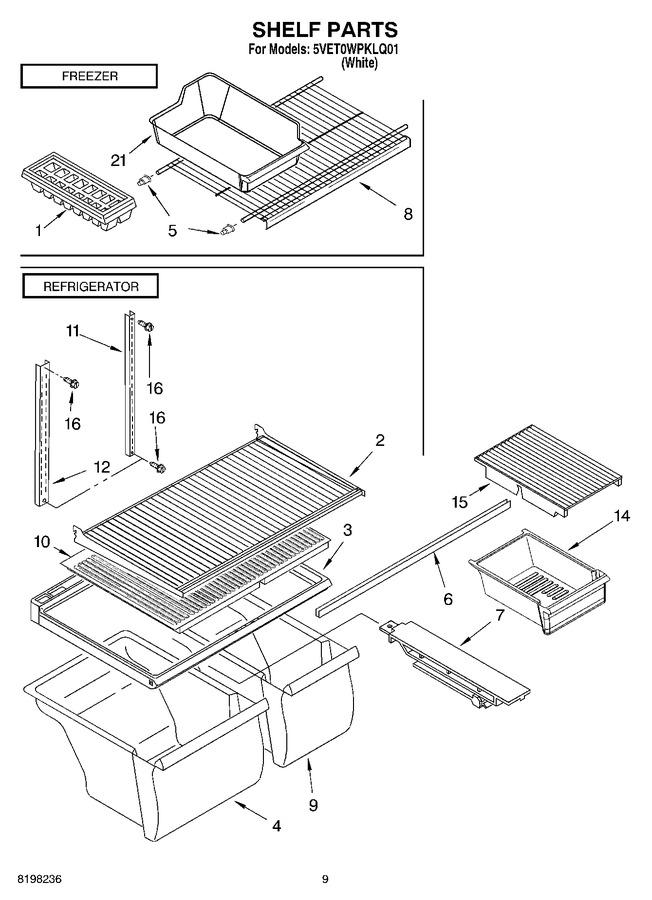

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
2	2163856		Shelf (2)		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2221752)				$ 247.46
4	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 179.19
5	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 14.00
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 97.22
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Pan, Crisper   (Replaces: 2166257)			Immediately	$ 177.03
10	2166149		Insert, Crisper Cover				$ 77.25
11	2210522		Shelf, Ladder (2)				$ 44.10
12	2202821		Shelf, Ladder		Appelez-nous	-
14	2200920K		Meat Pan				$ 81.92
15	2163848		Cover, Meat Pan				$ 71.41
16	WP489478		Screw   (Replaces: 489478)				$ 7.75
21	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
21	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
21	WPW10190943		4eckmf87   (Replaces: 2155304)				$ 378.13
21	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
21	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
21	350956		Enamel, Almond (12 Oz. Spray Can)				$ 54.01
21	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
21	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
21	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
21	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
21	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
21	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
21	833938		Kit, Terminal Connector				$ 8.47
21	1117510		Torx Key				$ 5.84
21	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
21	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
21	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
21	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
21	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
21	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
21	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
21	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
21	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
21	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
21	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14

    View Diagram in Separate Window       Print Part List
