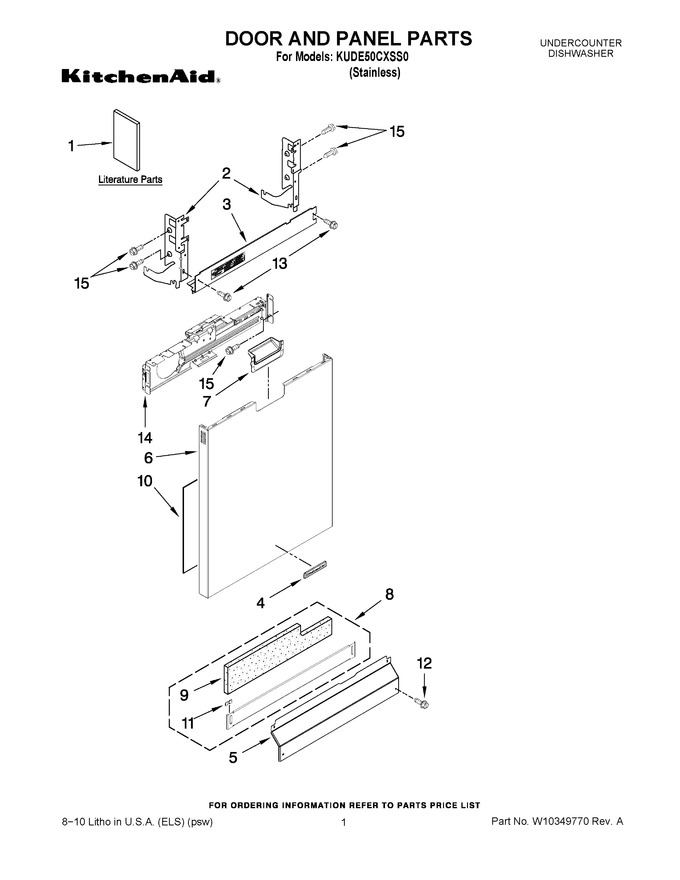

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300929		Guide, Use & Care Spanish		Appelez-nous	-
1	W10275503		Instructions, Installation		Appelez-nous	-
1	W10300936		Energy Guide		Appelez-nous	-
1	W10195613		Tech Sheet/english		Appelez-nous	-
1	W10195614		Tech Sheet/french		Appelez-nous	-
1	W10300928		Guide, Use & Care English/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 58.31
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
6	W10195531		Panel, Full Front (includes Items 4, 7, & 10) (stainless)				$ 185.43
7	W10563099		Pocket, Handle   (Replaces: W10195656)				$ 148.79
8	W10871196		Toe Panel (includes Items 9 & 11) (black)   (Replaces: 8558252)				$ 174.04
9	W10831329		Insulation, Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
10	W11126003		Insulation Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
11	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 11.21
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 89.95
15	WPW10243391		Screw (stainless)   (Replaces: W10243391)				$ 58.31
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
