Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10208736 Console Assembly (includes Insert) (black) Appelez-nous -
1 W10208737 Console Assembly (includes Insert) (white) Appelez-nous -
1 W10208738 Console Assembly (includes Insert) (midnight Grey) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

4 WPW10348409 Screw   (Replaces: 3369051) In-Stock Immediately $ 8.20

5 WPW10404412 Latch Assembly   (Replaces: W10077360) In-Stock Immediately $ 85.50

6 WPW10285178 Control, Electronic   (Replaces: W10056352) Special Order $ 263.40

7 W10255029 Switch, Door Appelez-nous -
8 WPW10083167 Fuse In-line   (Replaces: W10083167) Special Order $ 69.77


    View Diagram in Separate Window     Print Icon   Print Part List

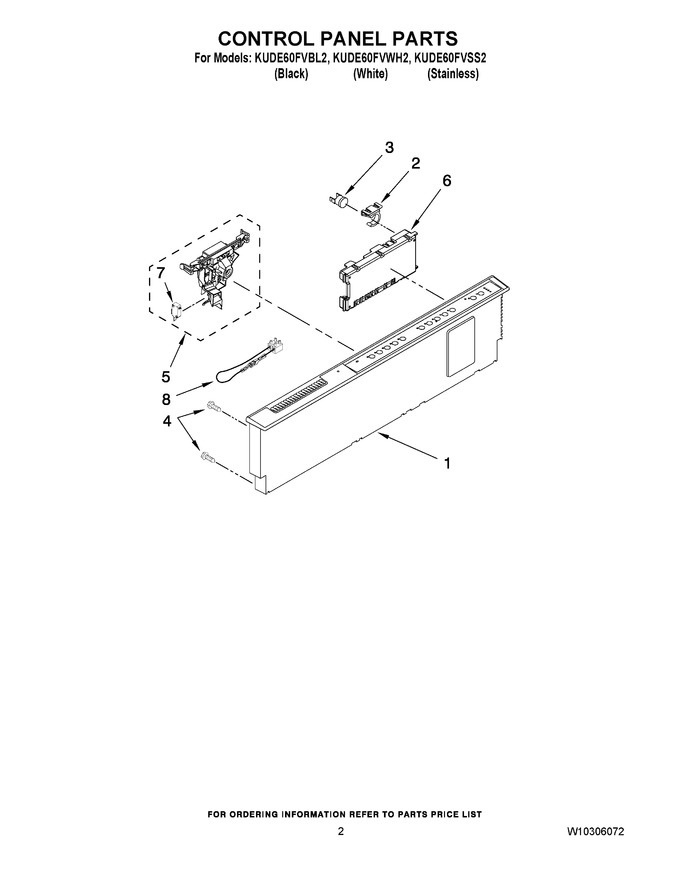

Diagram for KUDE60FVBL2
