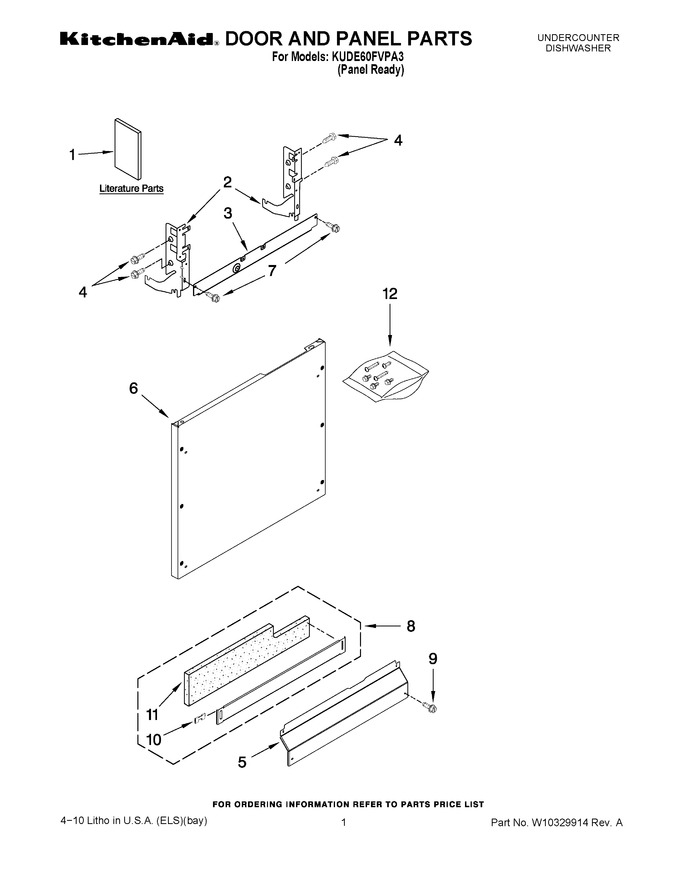

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10158347 | Tech Sheet (french) |
|
- | |||||
| 1 | W10056407 | Instructions,installation |
|
- | |||||
| 1 | W10247453 | Energy Guide |
|
- | |||||
| 1 | W10300235 | Guide, Use & Care English/french |
|
- | |||||
| 1 | W10300236 | Guide, Use & Care Spanish |
|
- | |||||
| 1 | W10142826 | Tech Sheet |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 6 | W11113792 | Panel, Front Panel Ready (Replaces: 8535133) |
|
Immediately | $ 373.42 | ||||
| 7 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 8 | W10871196 | Toe Panel Black (includes Items 10 & 11) (Replaces: W10205336) |
|
$ 174.04 | |||||
| 9 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 10 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 11.21 | |||||
| 11 | W10831329 | Insulation Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 12 | 8531882 | Screws, Fid |
|
$ 15.36 |
