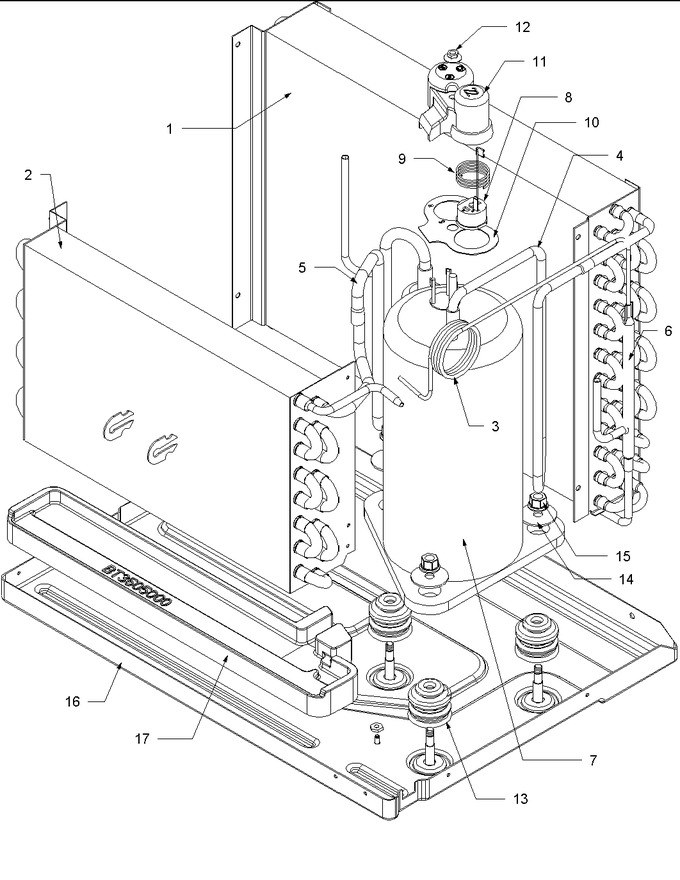

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3596503 | Assy, Cond Coil/tubing |
|
- | |||||
| 2 | 3596000 | Assy, Evap Coil Tubing |
|
- | |||||
| 3 | 3593616 | Tube, Formed Capillary |
|
- | |||||
| 4 | 3593622 | Tubing, Discharge |
|
- | |||||
| 5 | 3593700 | Assy, Suction Line |
|
- | |||||
| 6 | 3593804 | Assy, Strainer |
|
- | |||||
| 7 | BT9266100 | Compressor Tecumseh, |
|
- | |||||
| 8 | BT1243708 | Overload Switch,msp2 |
|
- | |||||
| 10 | BT1392604 | Gasket, Compressor (tec) |
|
- | |||||
| 11 | BT3055500 | Cap Compressor |
|
- | |||||
| 12 | BT1393000 | Nut, (tecumseh) |
|
- | |||||
| 13 | BT1339510 | Grommet - Comp (qty 3) |
|
- | |||||
| 14 | BT1392904 | Washer. Fender |
|
- | |||||
| 15 | BT1393007 | Locknut, Nylon |
|
- | |||||
| 16 | 3550200 | Assy, Base Pan |
|
- | |||||
| 17 | BT3505000 | Pan, Drain (styrofoam) |
|
- |
