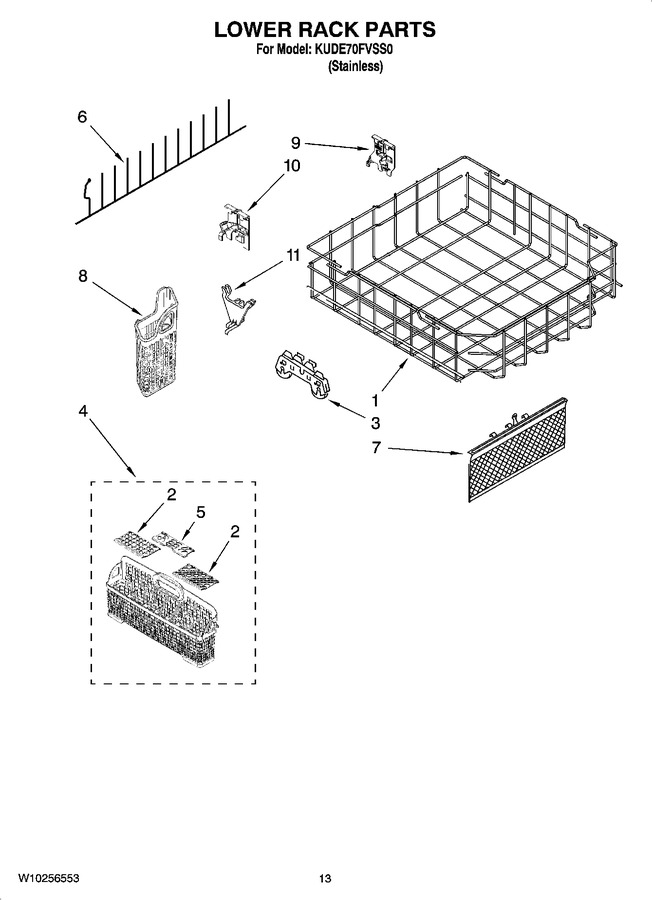

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11836636 | Lower Rack (Replaces: W10056271) |
|
$ 177.40 | |||||
| 2 | 8519663 | Lid, Basket Silverware (right Side) |
|
$ 94.69 | |||||
| 2 | 8519695 | Lid, Basket Silverware (left Side) |
|
$ 24.92 | |||||
| 3 | WPW10082868 | Wheel & Transport Assembly (Replaces: W10082868) |
|
Immediately | $ 49.90 | ||||
| 4 | WPW10190415 | Basket, Silverware (Replaces: W10190415) |
|
Immediately | $ 99.05 | ||||
| 5 | 8519662 | Lid, Basket Center |
|
$ 52.35 | |||||
| 6 | W10728160 | Tine, Row (Replaces: W10056272) |
|
Immediately | $ 49.07 | ||||
| 7 | 8519716 | Basket,small Items |
|
$ 57.95 | |||||
| 8 | 8519702 | Basket-utensil |
|
$ 39.71 | |||||
| 9 | WPW10175279 | Retainer, Tinerow (Replaces: W10175279) |
|
Immediately | $ 8.18 | ||||
| 10 | WPW10078215 | Retainer, Tine Row (combo) (Replaces: W10078215) |
|
Immediately | $ 8.27 | ||||
| 11 | WPW10078227 | Pivot, Tine Row (Replaces: W10078227) |
|
$ 12.48 |
