01 - Compressor Assy

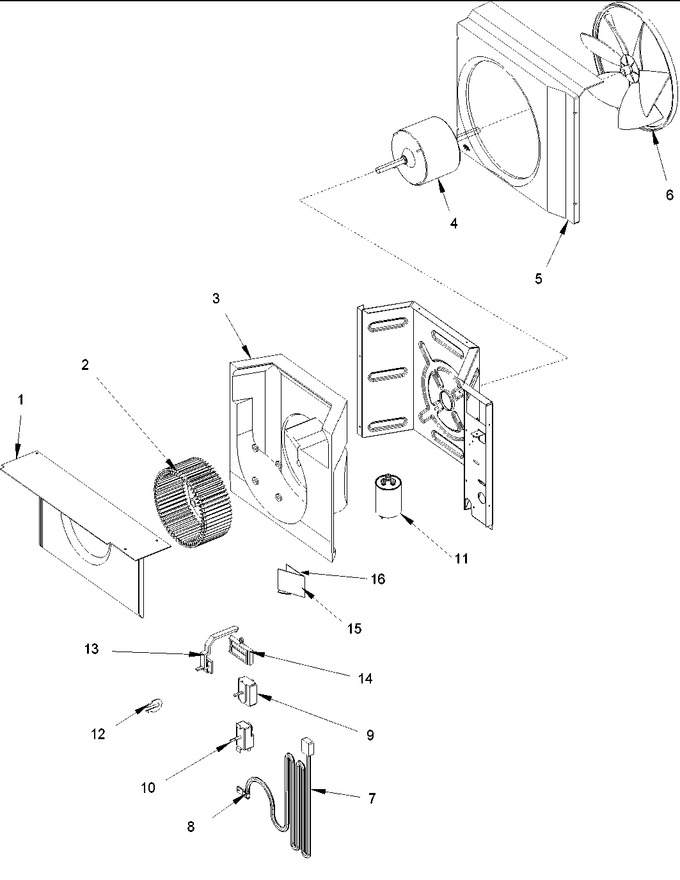

02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT3010000 | Partition, Blower (small) |
|
- | |||||
| 2 | BT1368000 | Wheel, Blower (serv) |
|
- | |||||
| 3 | BT3006000 | Scroll, Styrofoam (small) |
|
- | |||||
| 4 | BT1340000 | Motor,1/15hp-115v |
|
- | |||||
| 5 | BT3011000 | Shroud, Fan (small Rac) |
|
- | |||||
| 6 | BT1086700 | Fan Blade, Condenser 10`` |
|
- | |||||
| 7 | BT1210002 | Cord, Power (serv) |
|
- | |||||
| 8 | BT1393400 | Relief, Cord Power (small) |
|
- | |||||
| 9 | BT1370803 | Switch, Power (serv) |
|
- | |||||
| 10 | BT1370801 | Thermostat, Short Shaft (serv) |
|
- | |||||
| 11 | BT9457001 | Capacitor, Dual (service) |
|
- | |||||
| 12 | BT1531802 | Clip, Bulb |
|
- | |||||
| 13 | BT3076220 | Lever-cool Gray (small) |
|
- | |||||
| 14 | BT3076302 | Slide, Damper Control |
|
- | |||||
| 15 | BT3076100 | Door, Exhaust (rac) |
|
- | |||||
| 16 | BT1392611 | Foam Gasket |
|
- | |||||
| NI | 3093200S | Kit, Hard Start (service) |
|
- |
