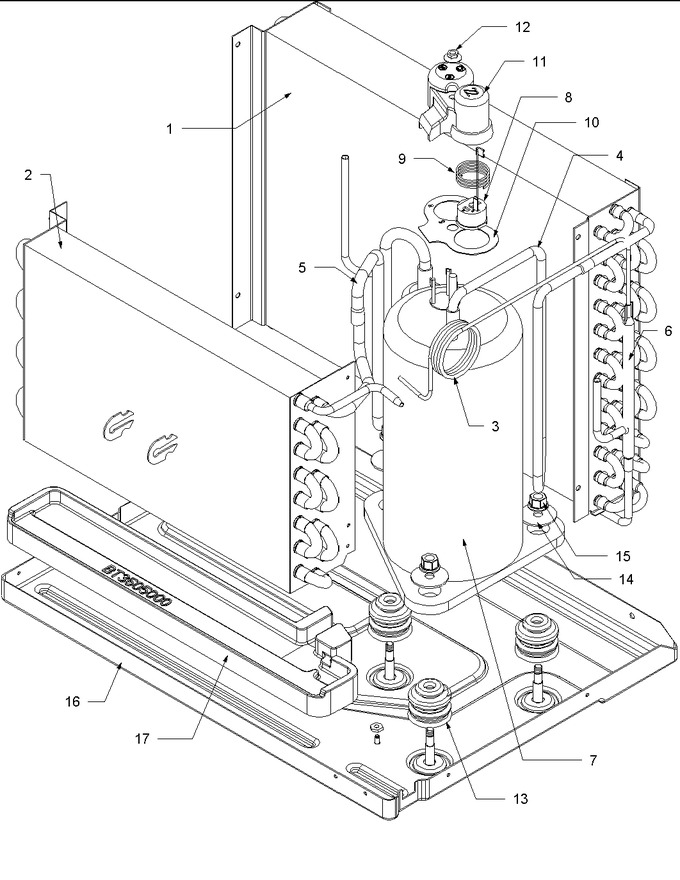

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3596505 | Assy, Condensor Coil |
|
- | |||||
| 2 | 3596000 | Assy, Evap Coil Tubing |
|
- | |||||
| 3 | 3593631 | Capillary, Formed |
|
- | |||||
| 4 | 3593636 | Tubing, Discharge |
|
- | |||||
| 5 | 3593705 | Assy, Suction Line |
|
- | |||||
| 6 | 3593805 | Assy, Strainer |
|
- | |||||
| 7 | BT9266220 | Compressor |
|
- | |||||
| 8 | BT1243728 | Overload |
|
- | |||||
| 9 | BT1393705 | Spring |
|
- | |||||
| 10 | BT1392619 | Gasket Comp Cap |
|
- | |||||
| 11 | BT3055504 | Cover, Compressor |
|
- | |||||
| 12 | WP776338 | Nut (Replaces: BT1393008) |
|
$ 18.29 | |||||
| 13 | BT1339510 | Grommet - Comp (qty 3) |
|
- | |||||
| 14 | BT1392904 | Washer. Fender |
|
- | |||||
| 15 | BT1393007 | Locknut, Nylon |
|
- | |||||
| 16 | 3550200 | Assy, Base Pan |
|
- | |||||
| 17 | BT3505000 | Pan, Drain (styrofoam) |
|
- |
