SELECT A DIAGRAM

01 - Compressor Assy


02 - Fan And Control Assy

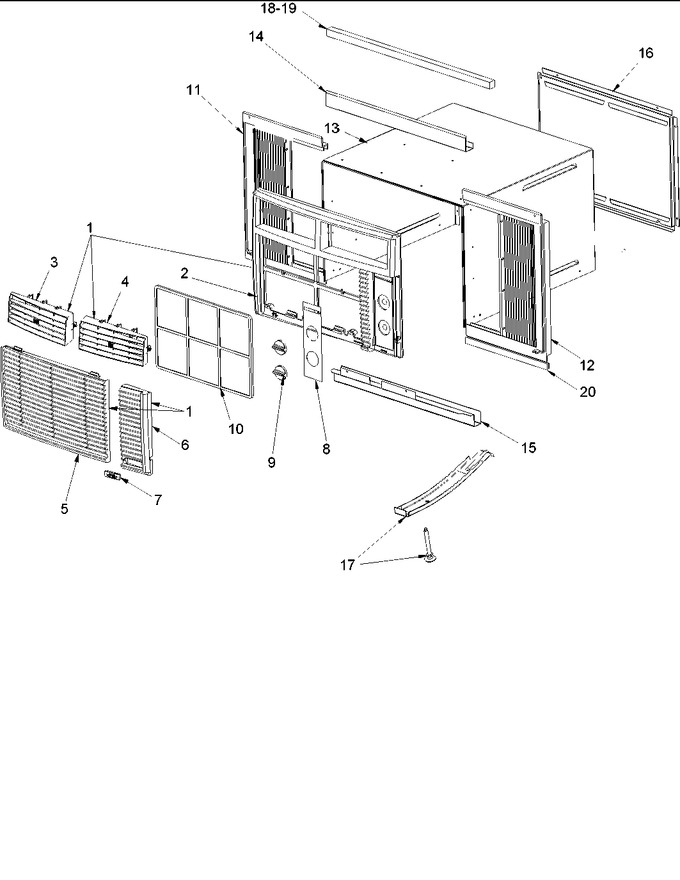

03 - Outer Case Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	BT3075025		Assy,front-sml Dlx		Appelez-nous	-
2	BT3075100		Frame - Front		Appelez-nous	-
3	BT3075412		Assy, Vent L. (small)		Appelez-nous	-
4	BT3075410		Assy, Vent R (small)		Appelez-nous	-
5	BT3075200		Grill - Front		Appelez-nous	-
6	BT3075300		Door - Control		Appelez-nous	-
7	BT3075913		Logo, Plastic (goodman)		Appelez-nous	-
8	BT1493326		Control Label		Appelez-nous	-
9	BT3075631		Knob, Rac (cool Gray)				$ 30.93
10	BT1369600		Filter, Air (serv)		Appelez-nous	-
11	BT3074117		Assy, Shutter (left)		Appelez-nous	-
11	BT3074115		Assy,shutter-sml Lft		Appelez-nous	-
12	BT3074116		Assy, Shutter (right)		Appelez-nous	-
12	BT3074114		Assy,shutter-sml Rght		Appelez-nous	-
13	3050800		Assy, Wrapper		Appelez-nous	-
13	3050802		Wrapper Assy		Appelez-nous	-
14	3003003P		Guide, Top (w/paint)		Appelez-nous	-
14	3003000P		Support, Top (w/paint Small)		Appelez-nous	-
15	3003103P		Guide, Bottom (w/paint Sm)		Appelez-nous	-
16	3002200P		Panel, Rear Louver (service)		Appelez-nous	-
17	3084003		Bracket, Support		Appelez-nous	-
18	BT1392600		Foam .75 X 1.50 (3.5 Ft)		Appelez-nous	-
19	BT1392601		Foam .25 X .50 (7.0 Ft)		Appelez-nous	-
20	BT3077700		I-beam		Appelez-nous	-
	NOTE:		Note: If Adjusting Hardware Is Required When Ordering Support Bracket, Order Hardware Kit Also.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
