SELECT A DIAGRAM

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill

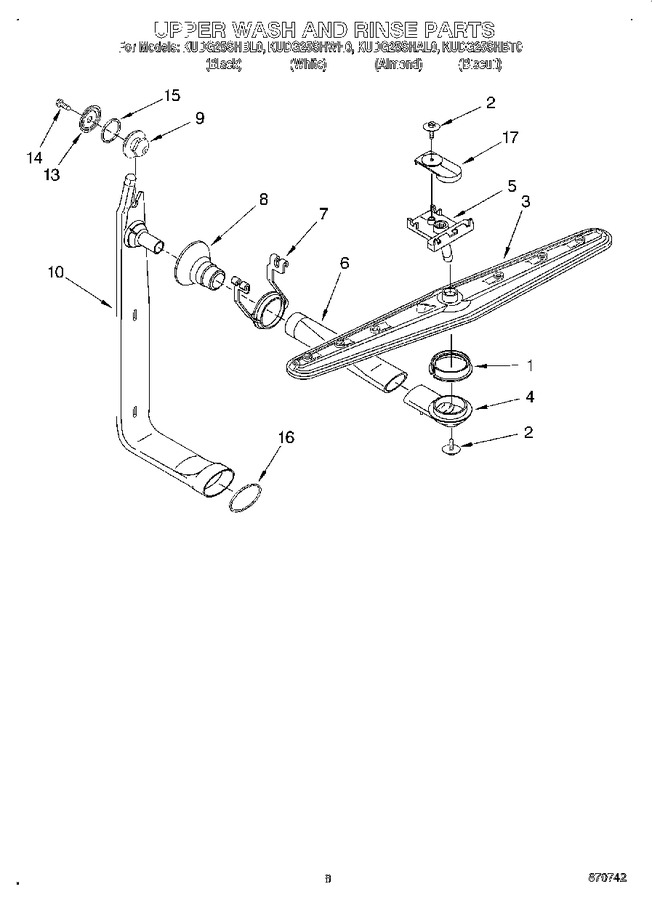

07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3376846		Seal, Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
2	WPW10349488		Screw   (Replaces: 3400031)				$ 8.97
3	675808		Sprayarm, Upper (also Order Item 1)   (Replaces: 9742989)			Immediately	$ 57.57
4	675808		Manifold, Sprayarm   (Replaces: 9742992)			Immediately	$ 57.57
5	WP8539324		Mount, Tiered   (Replaces: 9742994)			Immediately	$ 6.08
6	675808		Tube, Connector   (Replaces: 3379644)			Immediately	$ 57.57
7	WP3378186		Holder, Water Inlet Funnel   (Replaces: 9742997)				$ 38.84
8	675808		Funnel   (Replaces: 9743210)			Immediately	$ 57.57
9	9743473		Connector (includes Items 13, 14 & 15)		Appelez-nous	-
10	9742950		Feed Tube Assembly		Appelez-nous	-
13	9743475		Washer		Appelez-nous	-
14	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
15	9743474		Gasket, Connector		Appelez-nous	-
16	9742953		Seal, Tube				$ 18.02
17	WP8268812		Mount, Top Upper Sprayarm   (Replaces: 9743194)				$ 17.54

    View Diagram in Separate Window       Print Part List
