SELECT A DIAGRAM

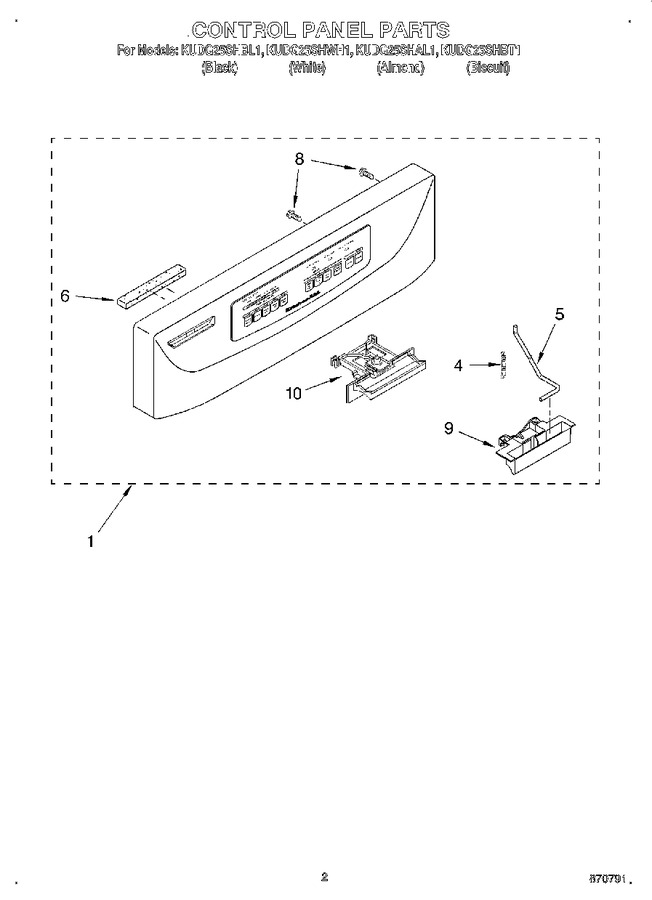

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9744101		Console, Complete (black Mdl.)				$ 201.60
1	9744102		Console, Complete (white Mdl.)		Appelez-nous	-
1	9744124		Console, Complete (almond Mdl.)		Appelez-nous	-
1	9744307		Console, Complete (biscuit Mdl.)		Appelez-nous	-
4	9743573		Spring, Handle				$ 5.83
5	9743572		Link, Handle				$ 6.67
6	9743412		Sponge, Vent		Appelez-nous	-
8	WPW10348409		Screw (4)   (Replaces: 3369051)			Immediately	$ 8.20
9	WP9743903		Handle, Latch (black Mdl.)   (Replaces: 9743903)				$ 146.61
9	WP9743903		Handle, Latch (white Mdl.)   (Replaces: 9743904)				$ 146.61
9	WP9743903		Handle, Latch (almond Model)   (Replaces: 9743905)				$ 146.61
9	WP9743903		Handle, Latch (biscuit Model)   (Replaces: 9743906)				$ 146.61
10	3380655		Latch Lever Asm.				$ 54.95

    View Diagram in Separate Window       Print Part List
