01 - Cover Sheet

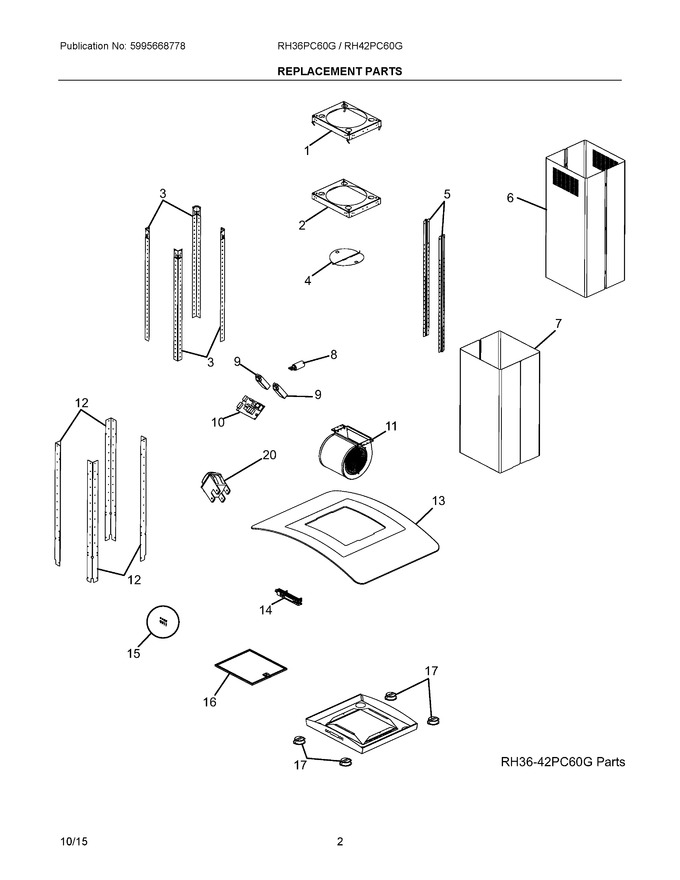

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304466259 | Support, Horizontal, Upper (hoods With Serial Numbers 2f82700001 Through 2f84299999) |
|
- | |||||
| 2 | 5304464287 | Support, Horizontal, Lower (hoods With Serial Numbers 2f82700001 Through 2f84299999) |
|
- | |||||
| 3 | 5304464288 | Support, Vertical, Upper, Angle (hoods With Serial Numbers 2f82700001 Through 2f84299999) |
|
- | |||||
| 4 | 5304466258 | Damper, Exhaust |
|
$ 115.45 | |||||
| 5 | 5304464289 | Support, Duct Cover, Vertical (hoods With Serial Numbers 2f82700001 Through 2f84299999) |
|
$ 83.54 | |||||
| 6 | 5304466679 | Cover, Duct, Upper, (2 Required)(hoods With Serial Numbers 2f82700001 Through 2f84299999) |
|
$ 421.35 | |||||
| 7 | 5304466680 | Cover, Duct, Lower, (2 Required)(hoods With Serial Numbers 2f8270000 Through 2f84299999) |
|
$ 375.17 | |||||
| 8 | 5304464261 | Capacitor |
|
$ 185.12 | |||||
| 9 | 5304464262 | Transformer |
|
$ 190.37 | |||||
| 10 | 5304464263 | Pc Board, Power/main, W/spacers |
|
Immediately | $ 230.18 | ||||
| 11 | 5304466260 | Blower Assembly |
|
$ 1,179.10 | |||||
| 12 | 5304464292 | Support, Vertical, Lower, Angle (hoods With Serial Numbers 2f8270000 Through 2f84299999) |
|
- | |||||
| 13 | 5304464293 | Canopy, 36 Inch, Glass |
|
$ 472.13 | |||||
| 14 | 5304464201 | Control Panel, Display, Lcd |
|
$ 348.35 | |||||
| 15 | 5304466263 | Screw Kit, Assembly |
|
- | |||||
| 16 | 5304464265 | Filter, Grease |
|
$ 108.76 | |||||
| 17 | 5304464266 | Lampholder, Socket, W/housing, Lamp |
|
$ 214.81 | |||||
| 20 | 5304472119 | Switch, On/off |
|
$ 98.81 | |||||
| 12A | 5304472731 | Support, Vertical, Lower, Angle (hoods With Serial Numbers Starting At2f843300703) |
|
$ 124.49 | |||||
| 1A | 5304472729 | Support, Ceiling Hanger (hoods With Serial Numbers Starting At2f843300703) |
|
$ 180.26 | |||||
| 3A | 5304472728 | Support, Vertical, Upper, Angle (hoods With Serial Numbers Starting At2f843300703) |
|
$ 94.17 | |||||
| 5A | 5304472730 | Support, Duct Cover, Vertical (hoods With Serial Numbers Starting At2f843300703) |
|
$ 87.05 | |||||
| 6A | 5304472692 | Cover, Duct, Upper, (2 Required)(hoods With Serial Numbers Starting At2f843300703) |
|
$ 285.03 | |||||
| 7A | 5304472691 | Cover, Duct, Lower, (2 Required)(hoods With Serial Numbers Starting At2f843300703) |
|
$ 319.31 | |||||
| NI | 5304464294 | Hardware Kit, Installation |
|
$ 151.78 | |||||
| NI | 5304466745 | Recirculation Kit, Island, W/filter |
|
- | |||||
| NI | 5304466255 | Filter, Charcoal, Recirculation |
|
$ 265.52 |
