SELECT A DIAGRAM

01 - Compressor Assy


02 - Fan And Control Assy

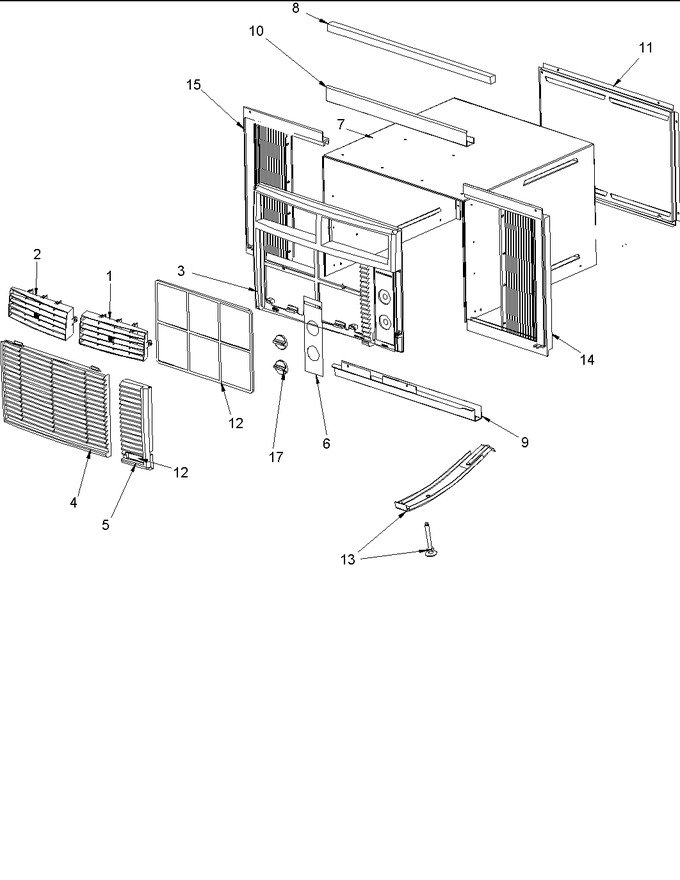

03 - Outer Case Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	BT3045410		Not Good Part Per Goodman		Appelez-nous	-
2	BT3045412		Not Good Part Per Goodman		Appelez-nous	-
3	BT3075100		Frame - Front		Appelez-nous	-
4	BT3075200		Grill - Front		Appelez-nous	-
5	BT3075300		Door - Control		Appelez-nous	-
6	BT1493326		Control Label		Appelez-nous	-
7	3050802		Wrapper Assy		Appelez-nous	-
8	BT1392600		Foam .75 X 1.50 (3.5 Ft)		Appelez-nous	-
9	3003103P		Guide, Bottom (w/paint Sm)		Appelez-nous	-
10	3003000P		Support, Top (w/paint Small)		Appelez-nous	-
11	3002200P		Panel, Rear Louver (service)		Appelez-nous	-
12	BT1369600		Filter, Air (serv)		Appelez-nous	-
13	3084000P		Support Bracket		Appelez-nous	-
14	3073004		Assy, Curtain (service)small R		Appelez-nous	-
15	3073000		Assy, Curtain (service)lh Smal		Appelez-nous	-
16	BT3075920		Logo, 1st Edition `amana`		Appelez-nous	-
17	BT3075609		Rac Knob		Appelez-nous	-
NI	BT1393200		Kit, Hardware (small)		Appelez-nous	-
