01 - Center Partition Assy And Controls

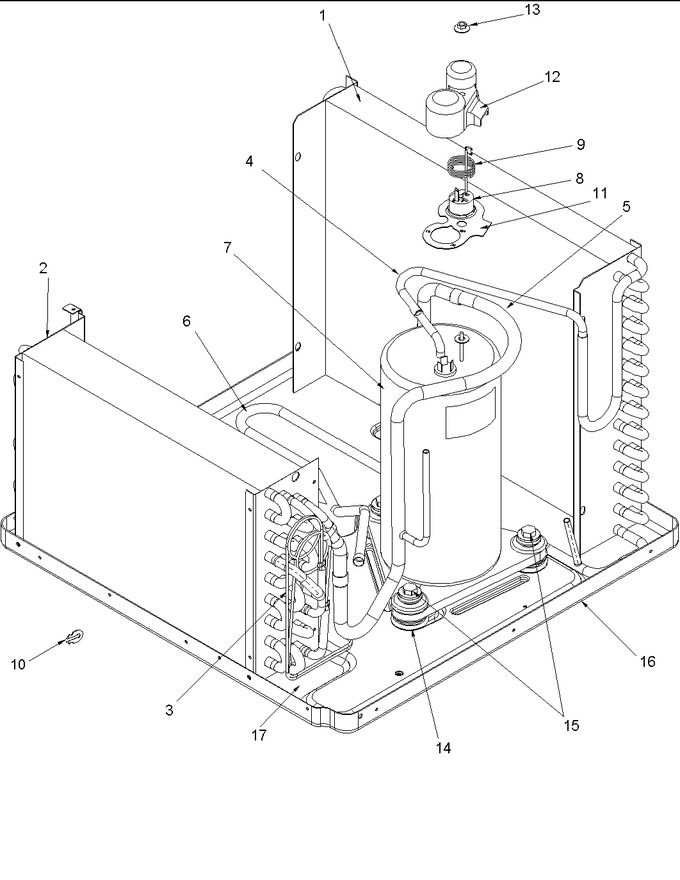

02 - Evaporator, Condenser And Compressor
03 - Outercase, Curtains And Front Assy
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3064910 | Coil, Condenser (serv) |
|
- | |||||
| 2 | 3096003 | Assy,evap Coil Tubing |
|
- | |||||
| 3 | 3093828 | Cap Tube Assy |
|
- | |||||
| 4 | 3093620 | Tube, Discharge |
|
- | |||||
| 5 | 3093719 | Assy, Suction Line |
|
- | |||||
| 6 | 3093825 | Assy, Liquid Line |
|
- | |||||
| 7 | BT9266109 | Compressor |
|
- | |||||
| 8 | BT1243701 | Overload |
|
- | |||||
| 10 | BT1531802 | Clip, Bulb |
|
- | |||||
| 11 | BT1392604 | Gasket, Compressor (tec) |
|
- | |||||
| 12 | BT3055500 | Cap Compressor |
|
- | |||||
| 13 | BT1393000 | Nut, (tecumseh) |
|
- | |||||
| 14 | BT1339509 | Grommet,compressor |
|
- | |||||
| 15 | BT1393700 | Bolt, Compressor |
|
- | |||||
| 17 | BT3005000 | Pan, Drain (styrofoam Small) |
|
- |
