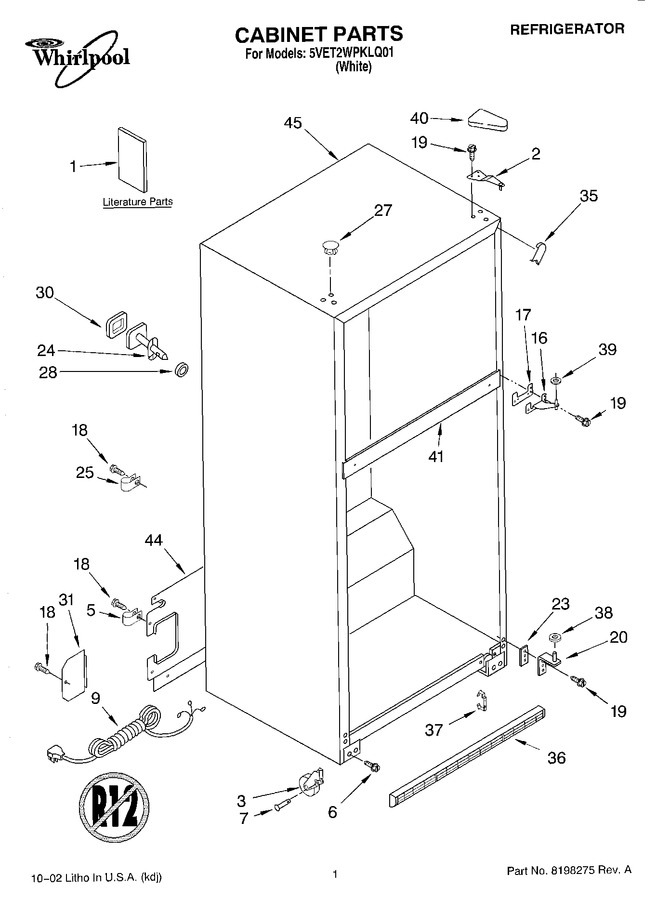

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2225305		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
1	LIT2218585		Literature Parts (use & Care Guide)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.18
6	WP3400504		Screw   (Replaces: 3400504)				$ 7.19
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 18.21
9	2205329		Cord-service		Appelez-nous	-
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 87.64
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.89
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
19	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 8.47
23	2172743		Shim, Bottom Hinge				$ 33.55
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
25	489348		Clamp		Appelez-nous	-
27	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 21.78
28	N/A		Seal, Front (not Serviced)		Appelez-nous	-
30	N/A		Seal, Rear (not Serviced)		Appelez-nous	-
31	2166251		Cover, Water Valve				$ 6.43
35	WPW10283959		Corner Filler (2)   (Replaces: 2201014)				$ 7.82
36	2201006		Grille		Appelez-nous	-
37	2189356		Clip-grille				$ 5.70
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
39	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
40	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 19.23
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
44	2210542		Cover, Unit		Appelez-nous	-
45	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
