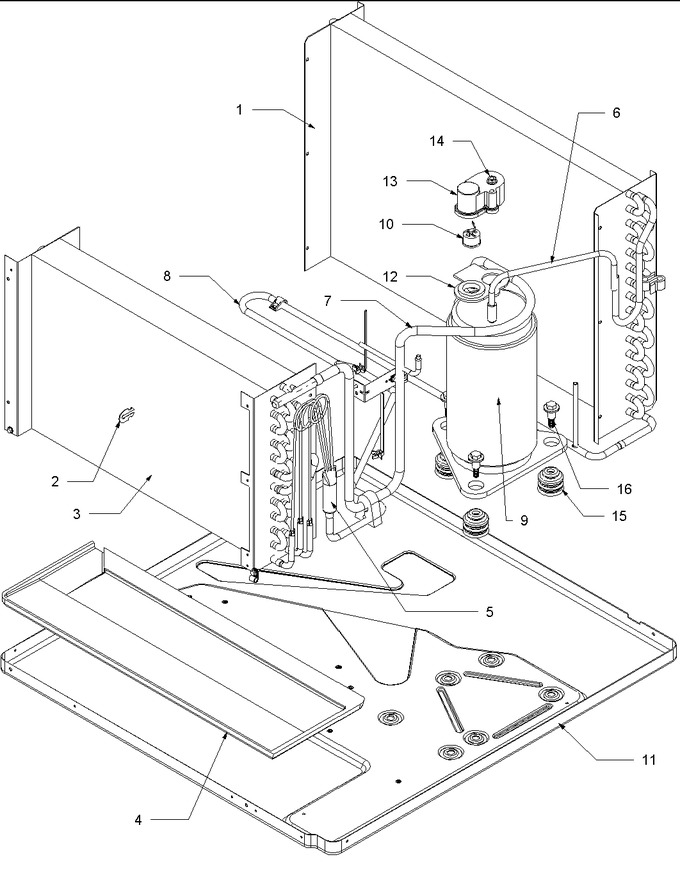

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3096528 | Assy,cond Coil Tubing |
|
- | |||||
| 2 | BT1531802 | Clip, Bulb |
|
- | |||||
| 3 | 3096018 | Assy, Evap Coil Tubing |
|
- | |||||
| 4 | BT3005002 | Pan, Drain (styrofoam Large) |
|
- | |||||
| 5 | 3093854 | Assy, Capillary Tube |
|
- | |||||
| 6 | 30936232 | Discharge Line |
|
- | |||||
| 7 | 3093861 | Assy, Suction Line |
|
- | |||||
| 8 | 3093860 | Assy, Liquid Line |
|
- | |||||
| 9 | BT9266104 | Compressor |
|
- | |||||
| 10 | BT1243702 | Switch, Overload (serv) |
|
- | |||||
| 11 | 3050209S | Base Pan Assy |
|
- | |||||
| 12 | BT1392604 | Gasket, Compressor (tec) |
|
- | |||||
| 13 | BT3055505 | Plastic Cover |
|
- | |||||
| 14 | BT1393000 | Nut, (tecumseh) |
|
- | |||||
| 15 | BT1339500 | Grommet - Comp |
|
- | |||||
| 16 | BT1393704 | Bolt, Comp. Shoulder 5/16-18 |
|
- |
